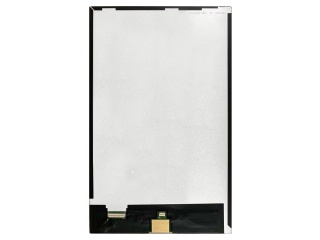

| Part Number | TV101WUM-NM1 |
| Mark | BOE |
| Gréisst | 10.1 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1200×1920 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | 8S4P WLED , 30K hours , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | BOE |
| Modell Numm | TV101WUM-NM1 |
| Écran Gréisst | 10.1 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1200(RGB)×1920 (WUXGA) 225PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 135.36 × 216.576 (H×V) |
| Kontur (mm) | 143 × 227.926 × 4.4 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare, Hard coating, Antireflection |
| luminance | - |
| Kontrast Verhältnis | 900 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| Faarfdéift | 16.7M |
| mass | 145g (Max.) |
| benotzt fir | Pad & Tablet |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | MIPI (4 data lanes) Connector |
| Spannungsversuergung | 3.3V (Typ.)(VDD) |
| max. Bewäertungen | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
