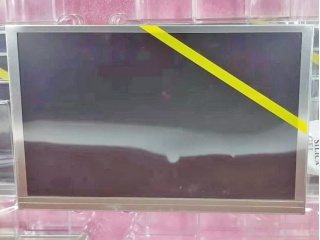

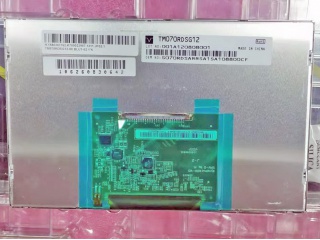

| Part Number | TM070RDSG12 |
| Mark | TIANMA |
| Gréisst | 7.0 |
| Applikatioun | Industrial |
| Opléisung | 800×480 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 7S3P WLED , 50K hours , With LED Driver |
| Interface | |
| Fabrikant beschwéiert | TIANMA |
| Modell Numm | TM070RDSG12 |
| Écran Gréisst | 7.0 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 152.4 × 91.44 (H×V) |
| Kontur (mm) | 167 × 106.3 × 9.8 (H×V×D) |
| Bezel Beräich (mm) | 154.4 × 93.44 (H×V) |
| Behandlung | Antiglare |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 20 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | SFT, Normally Black, Transmissive |
| Faarfdéift | 262K/16.7M 70% NTSC |
| mass | 175g (Typ.) |
| benotzt fir | Industrial |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
