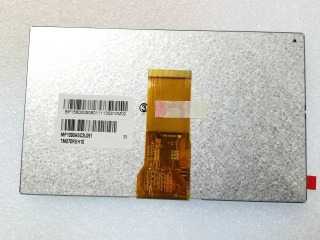

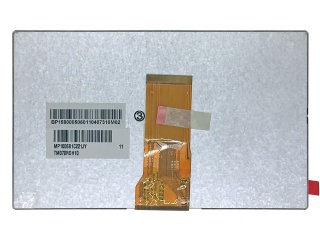

| Part Number | TM070RDH10-11 |
| Mark | TIANMA |
| Gréisst | 7.0 |
| Applikatioun | Industrial Digital P |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 3S8P |
| Interface | Parallel |
| Panel Mark | TIANMA |
| Panel Modell | TM070RDH10-11 |
| Panel Gréisst | 7.0" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 800(RGB)×480, WVGA, 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 154.08(W)×85.92(H) mm |
| bezel Ouverture | 157.08(W)×89.39(H) mm |
| Kontur Gréisst | 164.9(W)×100(H) ×6(D) mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | 12 o'clock |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K/16.7M 50% NTSC |
| Lampe Typ | 3S8P WLED , 20K hours , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 160g (Typ.) |
| Applikatioun | Industrial Digital Photo Frame Portable DVD Player |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Input Volt | 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| 70WVW3A | SII | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| CLAA070LC0FCT | CPT | 7.0 | 800×480 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| TX18D40VM1CAA | KOE | 7.0 | 800×480 |
