| Part Number | TM055XDHP10 |
| Mark | Tianma |
| Gréisst | 5.5 |
| Applikatioun | MPH |
| Opléisung | 540×960 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | TIANMA |
| Panel Modell | TM055XDHP10 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.5 inch |
| Resolutioun | 540(RGB)×960 , qHD |
| Display Modus | FFS, Normally Black, Transmissive |
| aktiv Beräich | 68.04×120.96 mm |
| skizzéieren | 72.14×130.86×1.95 mm |
| Uewerfläch | Antiglare (Haze 42%) |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 80Hz |
| Lampe Typ | 5S2PWLEDWithout Driver |

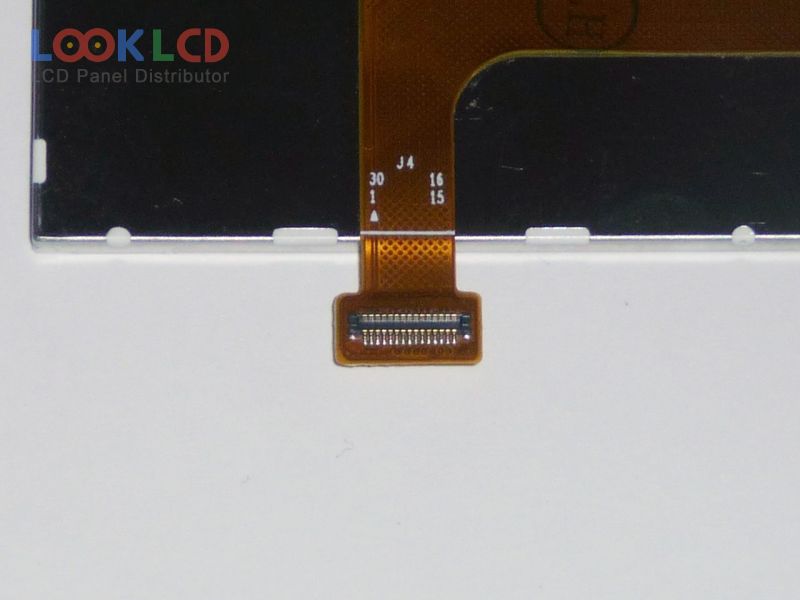

| Signal Interface | MIPI (2 data lanes), 30 pins |
| Input Volt | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| Applikatioun | MPH |
