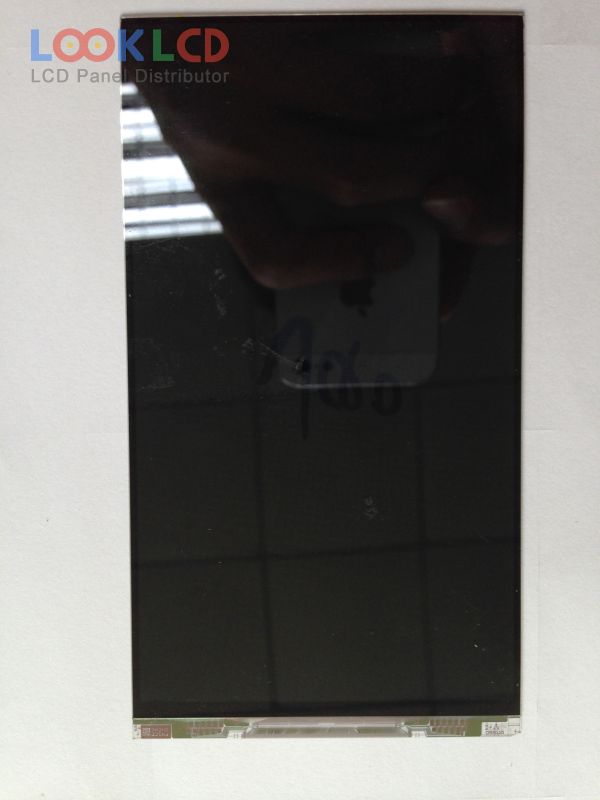

| Part Number | CLAN055WA41 3XB |
| Mark | CPT |
| Gréisst | 5.5 |
| Applikatioun | MPH |
| Opléisung | 720×1280 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | |
| Panel Mark | CPT |
| Panel Modell | CLAN055WA41 3XB 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 5.5 inch |
| Resolutioun | 720(RGB)×1280 , WXGA |
| Display Modus | HFFS, Normally Black, Transmissive |
| aktiv Beräich | 68.04×120.96 mm |
| skizzéieren | 70.84×128.96 mm |
| Uewerfläch | Hard coating |
| Glas Déift | 0.20+0.20 mm |
| transmissivitéit | 5.0% (Typ.)(with APCF) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Chauffeur ic | COG Suggest OTM1283A-C35 |
| Input Volt | 1.8/2.8/2.8V (Typ.)(VDDI/VCIVCC) |
| Applikatioun | MPH |
| CLAN055WA41 3XB | CPT | 5.5 | 720×1280 |
| H546DAN01.2 | AUO | 5.5 | 1080×1920 |
| LH550WF2-SD01 | LG Display | 5.5 | 1080×1920 |
| LQ055T3SX02 | SHARP | 5.5 | 1080×1920 |
| LQ055T3SX04 | SHARP | 5.5 | 1080×1920 |
| LS055T3SX05 | SHARP | 5.5 | 1080×1920 |
| NL3224BC35-20 | NLT | 5.5 | 320×240 |
| PW056XU1 | E Ink | 5.5 | 480×234 |
| TM055JVZG02 | Tianma | 5.5 | 720×1280 |
| UG-5664ASYGF01 | WiseChip | 5.5 | 256×64 |
| AMS529BY01 | Samsung | 5.3 | 1080×1920 |
| CLAF050LG41 TXX | CPT | 5.0 | 540×960 |
| CLAF055WB41 TXX | CPT | 5.5 | 720×1280 |
| CLAN050LE61 1XE | CPT | 5.0 | 540×960 |
| H429AL02.0 | AUO | 4.3 | 540×960 |
| H598QAN01.0 | AUO | 6.0 | 1440×2560 |
| LH350H01-FD01 | LG Display | 3.5 | 320×480 |
| LS026Q3DX01 | SHARP | 2.6 | 240×320 |
| TD035STEB1 | TPO | 3.5 | 240×320 |
| TM022HDHT1-05 | Tianma | 2.2 | 240×320 |
