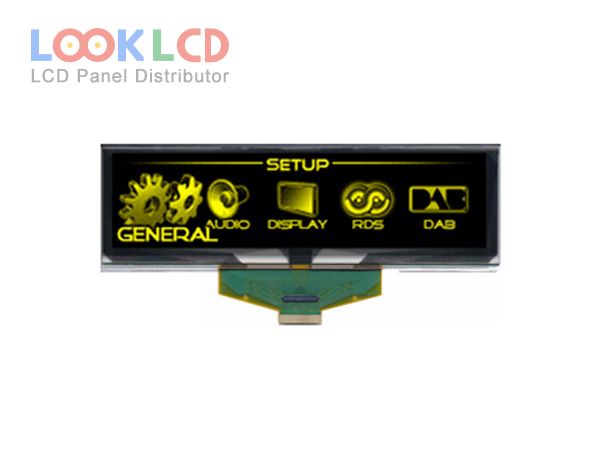

| Part Number | UG-5664ASYGF01 |
| Mark | WiseChip |
| Gréisst | 5.5 |
| Applikatioun | IA |
| Opléisung | 256×64 |
| Zesummesetzung | OLED |
| Hellegkeet | 60 |
| CR | 10000:1 |
| Faarwen | Grayscale(Y) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Panel Mark | Univision |
| Panel Modell | UG-5664ASYGF01 |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 5.5 inch |
| Resolutioun | 256×64 |
| aktiv Beräich | 135.65×33.89 mm |
| skizzéieren | 146×45×2.1 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 60 cd/m² (Typ.) |
| Kontrast Verhältnis | 10000 : 1 (Typ.) |
| weisen Faarwen | Grayscale(Y) (4-bit) |
| Vue Wénkel | |
| Chauffeur ic | COF Built-in SSD1322 |
| Signal Interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| Input Volt | 2.8/15V (Typ.)(VCI/VCC) |
| rohs: | |
| Applikatioun | IA |
