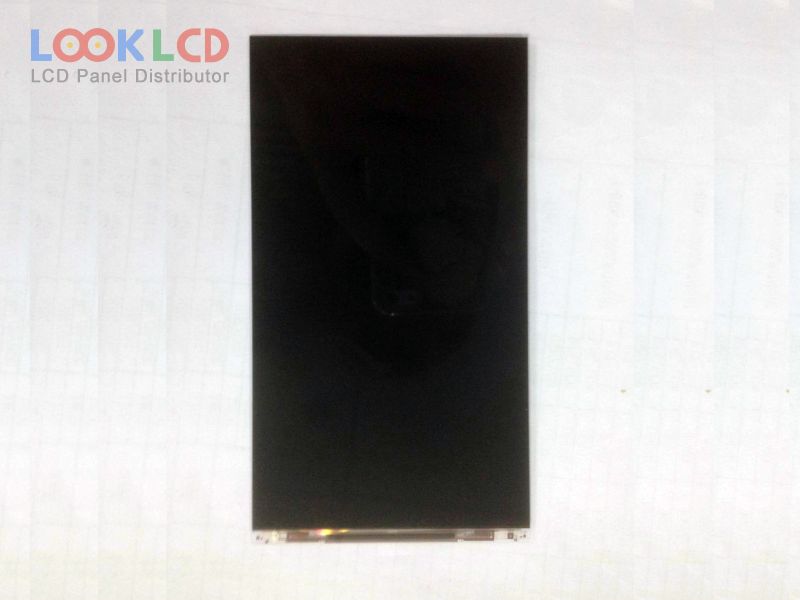

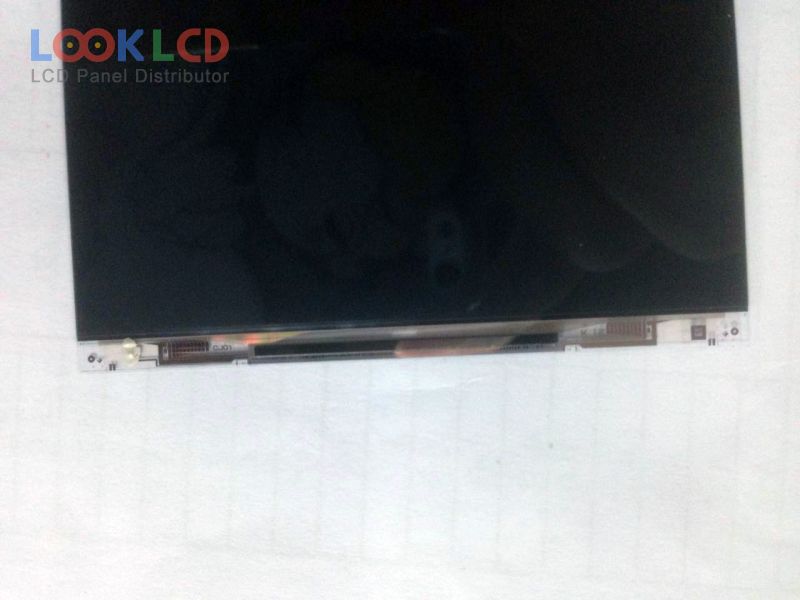

| Part Number | LQ055T3SX04 |
| Mark | SHARP |
| Gréisst | 5.5 |
| Applikatioun | MPH |
| Opléisung | 1080×1920 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | |
| Panel Mark | SHARP |
| Panel Modell | LQ055T3SX04 |
| Panel Typ | IGZO TFT-LCD , CELL |
| Panel Gréisst | 5.5 inch |
| Resolutioun | 1080(RGB)×1920 , FHD |
| Display Modus | New Mode2, Normally Black, Transmissive |
| aktiv Beräich | 68.04×120.96 mm |
| skizzéieren | 70.84×128.16 mm |
| Uewerfläch | |
| Glas Déift | 0.20+0.20 mm |
| transmissivitéit | 4.2% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 35 (Max.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Chauffeur ic | COG Built-in NT35532 |
| Applikatioun | MPH |
