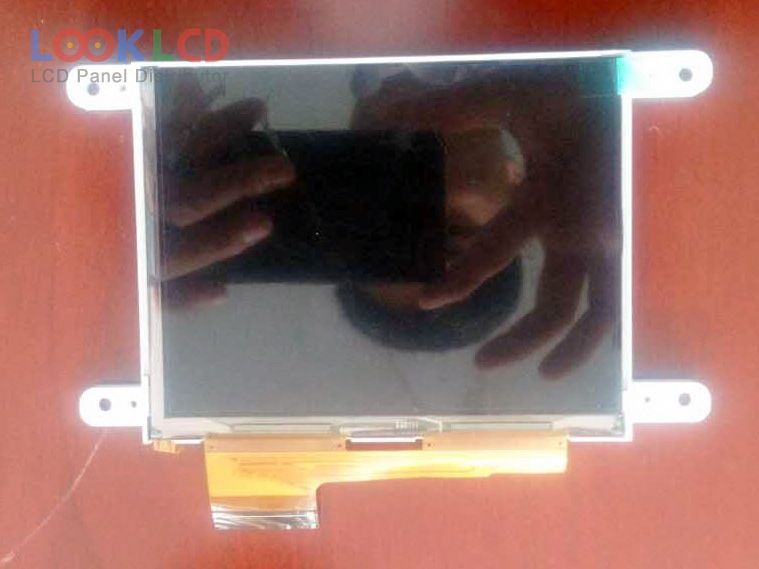

| Part Number | TM050QDH07 |
| Mark | Tianma |
| Gréisst | 5.0 |
| Applikatioun | IA |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | TIANMA |
| Panel Modell | TM050QDH07 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.0 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 101.568×76.176 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Dithering), CIE193150% |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLED |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| Input Volt | 3.3/5.0/15.0/-8.2V (Typ.)(VDD/AVDD/VGH/VGL) |
| Applikatioun | IA |
| H497TLB01 | AUO | 5.0 | 720×1280 |
| TM050JVZG28 | Tianma | 5.0 | 720×1280 |
| TM050LDZ00 | Tianma | 5.0 | 240×400 |
| TM050NDH01 | Tianma | 5.0 | 480×272 |
| TM050QDH01 | Tianma | 5.0 | 640×480 |
| TM050QDH06 | Tianma | 5.0 | 640×480 |
| TM050QDH07 | Tianma | 5.0 | 640×480 |
| TM050QDH11 | Tianma | 5.0 | 640×480 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
| EL640.480-AA1 | Lumineq | 10.4 | 640×480 |
| G104STN01.0 | AUO | 10.4 | 800×600 |
| G170J1-LE1 | Innolux | 17.0 | 1920×1200 |
| G215HVN01.0 S03 | AUO | 21.5 | 1920×1080 |
| HGS128645-Y-EH-LV | Other | 2.7 | 128×64 |
| LP064V1 | LG Display | 6.4 | 640×480 |
| LQ104V1DG21 | SHARP | 10.4 | 640×480 |
| LTM10C209A | TOSHIBA | 10.4 | 640×480 |
| RGS31256032WH000 | RiTdisplay | 3.1 | 256×32 |
| TX17D01VM2EAB | KOE | 6.5 | 640×480 |
