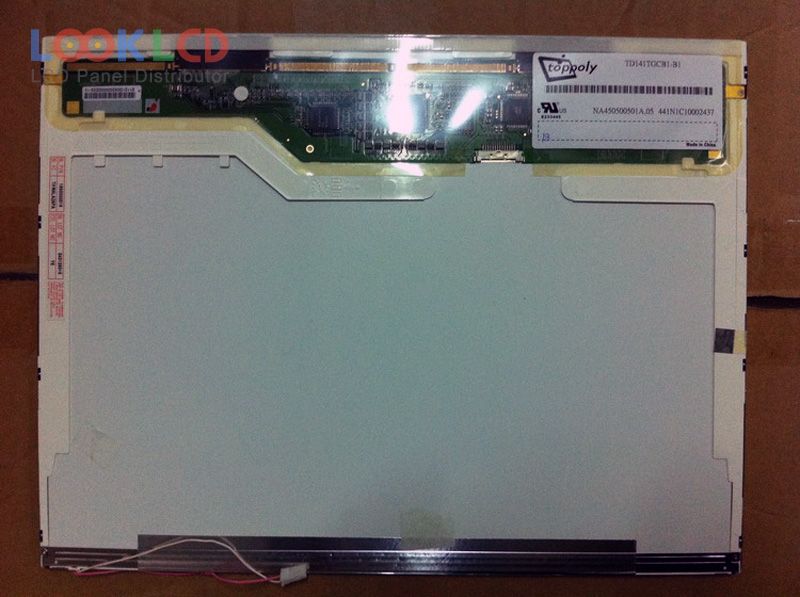

| Part Number | TD141TGCD1 |
| Mark | TPO |
| Gréisst | 14.1 |
| Applikatioun | NBPC |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 150 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | Toppoly |
| Panel Modell | TD141TGCD1 8 Compatible model |
| Panel Typ | LTPS TFT-LCD , LCM |
| Panel Gréisst | 14.1 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 285.696×214.272 mm |
| skizzéieren | 299×226.5×5.45 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 150 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 8/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 40/40/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |

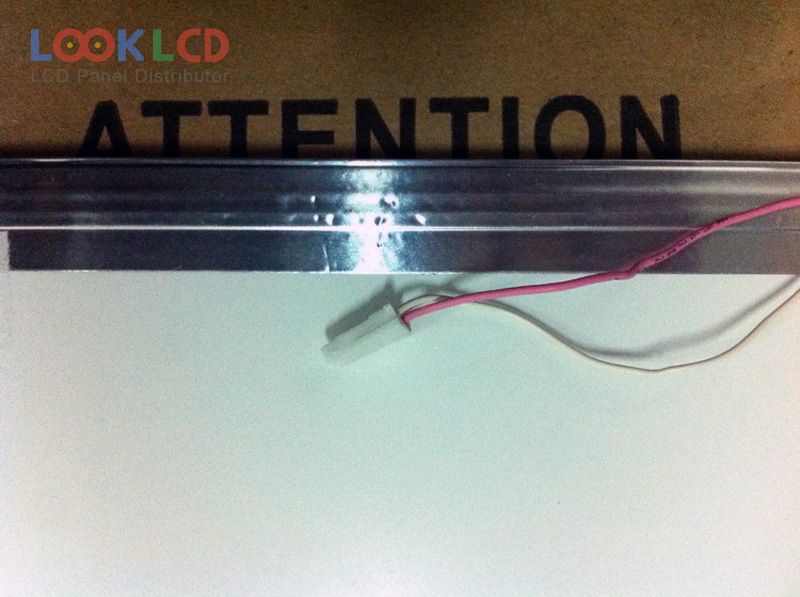

| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LP141WP1-TLA2 | LG Display | 14.1 | 1440×900 |
| LP141WX1-TLA1 | LG Display | 14.1 | 1280×800 |
| LP141WX1-TLE3 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLA4 | LG Display | 14.1 | 1280×800 |
| LT141X7-122 | Samsung | 14.1 | 1024×768 |
| LT141X7-124 | Samsung | 14.1 | 1024×768 |
| LTN141AT12-C01 | Samsung | 14.1 | 1280×800 |
| LTN141W1-L09 | Samsung | 14.1 | 1280×800 |
| N141X6-L01 | Innolux | 14.1 | 1024×768 |
| TD141TGCD1 | TPO | 14.1 | 1024×768 |
| B101EW01 V0 | AUO | 10.1 | 1280×720 |
| LP121WX3-TLA1 | LG Display | 12.1 | 1280×800 |
| LP133WH2-TLN4 | LG Display | 13.3 | 1366×768 |
| LP141WX3-TLN2 | LG Display | 14.1 | 1280×800 |
| LP156WH2-TLBA | LG Display | 15.6 | 1366×768 |
| LP173WF2-TPB1 | LG Display | 17.3 | 1920×1080 |
| LQ106K1LA05 | SHARP | 10.6 | 1280×768 |
| LTD121KX6B | TOSHIBA | 12.1 | 1280×800 |
| N141XC-L02 | Innolux | 14.1 | 1024×768 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
