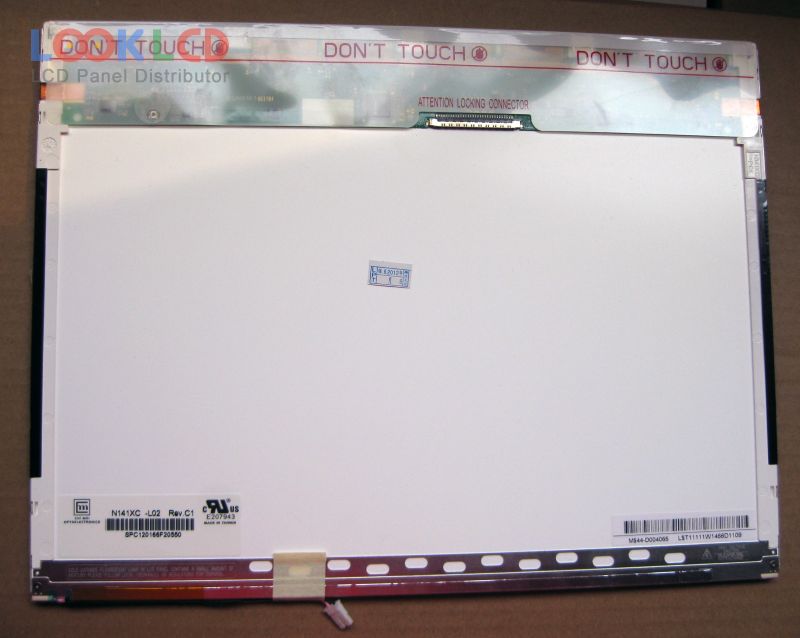

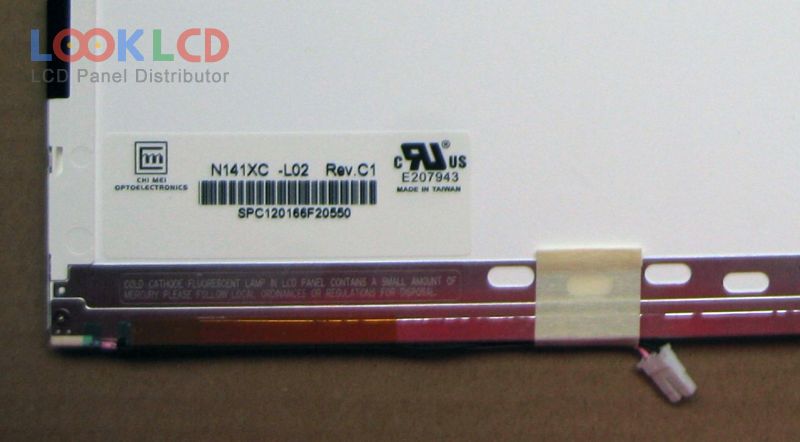

| Part Number | N141XC-L02 |
| Mark | Innolux |
| Gréisst | 14.1 |
| Applikatioun | NBPC |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 180 |
| CR | 450:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | N141XC-L02 8 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.1 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 285.696×214.272 mm |
| skizzéieren | 299×228×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare (Haze 26%), Hard coating (3H) |
| Hellegkeet | 180 cd/m² (Typ.) |
| Kontrast Verhältnis | 450:1 (Min.) |
| weisen Faarwen | 262K (6-bit), CIE193148% |
| Äntwert Zäit | 5/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |

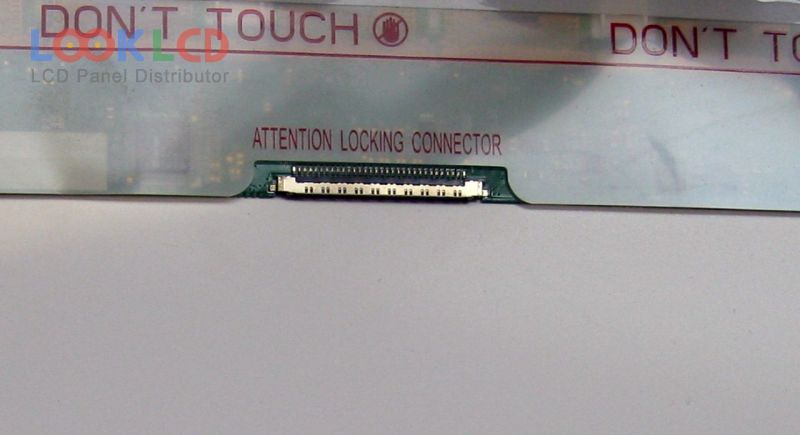

| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| B141PW03 V1 | AUO | 14.1 | 1440×900 |
| LP141WX1-TLE1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLD1 | LG Display | 14.1 | 1280×800 |
| LTN141AT03-301 | Samsung | 14.1 | 1280×800 |
| LTN141AT09-201 | Samsung | 14.1 | 1280×800 |
| LTN141AT12-C01 | Samsung | 14.1 | 1280×800 |
| LTN141BT08-001 | Samsung | 14.1 | 1440×900 |
| N141X6-L01 | Innolux | 14.1 | 1024×768 |
| N141XC-L02 | Innolux | 14.1 | 1024×768 |
| CLAA154WA01 | CPT | 15.4 | 1280×800 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| LP125WH2-SLB2 | LG Display | 12.5 | 1366×768 |
| LP133WH2-TLHA | LG Display | 13.3 | 1366×768 |
| LP171WX2-A4K7 | LG Display | 17.1 | 1440×900 |
| LTD104EDQP | TOSHIBA | 10.4 | 1024×768 |
| LTN121AT10-301 | Samsung | 12.1 | 1280×800 |
| LTN133AT25-T01 | Samsung | 13.3 | 1366×768 |
| LTN154X3-L09-G | Samsung | 15.4 | 1280×800 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
