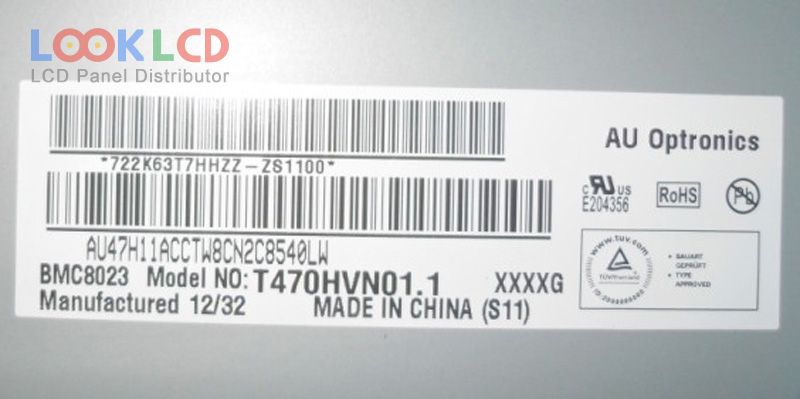

| Part Number | T470HVN01.1 |
| Mark | AUO |
| Gréisst | 47 |
| Applikatioun | LCTV |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 3000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | T470HVN01.1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 47 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | AMVA, Normally Black, Transmissive |
| aktiv Beräich | 1039.68×584.82 mm |
| skizzéieren | 1070.6×622 mm |
| Uewerfläch | Antiglare (Haze 2%), Hard coating (3H) |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 3000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 6.5 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
