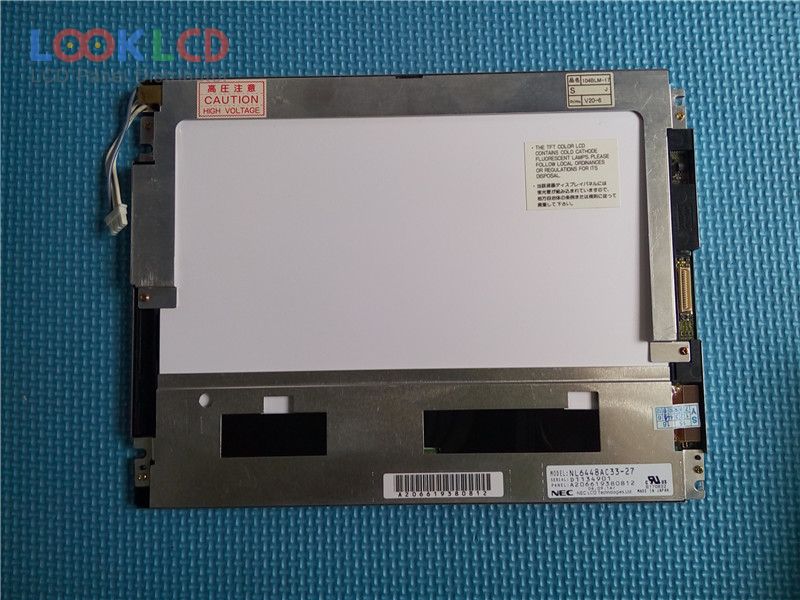

| Part Number | NL6448AC33-27 |
| Mark | NLT |
| Gréisst | 10.4 |
| Applikatioun | IA |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | NEC |
| Panel Modell | NL6448AC33-27 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 211.2×158.4 mm |
| skizzéieren | 243×185.1×11.5 mm |
| Uewerfläch | |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193143% |
| Äntwert Zäit | 15/60 (Typ.)(Tr/Td) |
| Vue Wénkel | 50/50/50/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLEmbedded (Inverter) |
| Signal Interface | CMOS (1 ch, 6-bit), 31 pins |
| Input Volt | 3.3/5.0V (Typ.) |
| Applikatioun | IA |
| NL6448AC30-09 | NLT | 9.4 | 640×480 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC20-35D | NLT | 6.5 | 640×480 |
| NL6448BC26-09 | NLT | 8.4 | 640×480 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| NL6448BC33-50 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-64 | NLT | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| EL320.240.36 AGL | Lumineq | 5.7 | 320×240 |
| G121I1-L01 | Innolux | 12.1 | 1280×800 |
| LB150X03-TL02 | LG Display | 15.0 | 1024×768 |
| LM104VC1T51 | SHARP | 10.4 | 640×480 |
| LTD104C11Z | TOSHIBA | 10.4 | 640×480 |
| OEL9M0072-B-E | Other | 1.54 | 128×64 |
| PD104VT1 | E Ink | 10.4 | 640×480 |
| UG-2832TSWGG01 | WiseChip | 1.0 | 128×32 |
| UG-5664ALBDF01 | WiseChip | 2.8 | 256×64 |
| UG-6028GDEBF02 | WiseChip | 1.7 | 160×128 |
