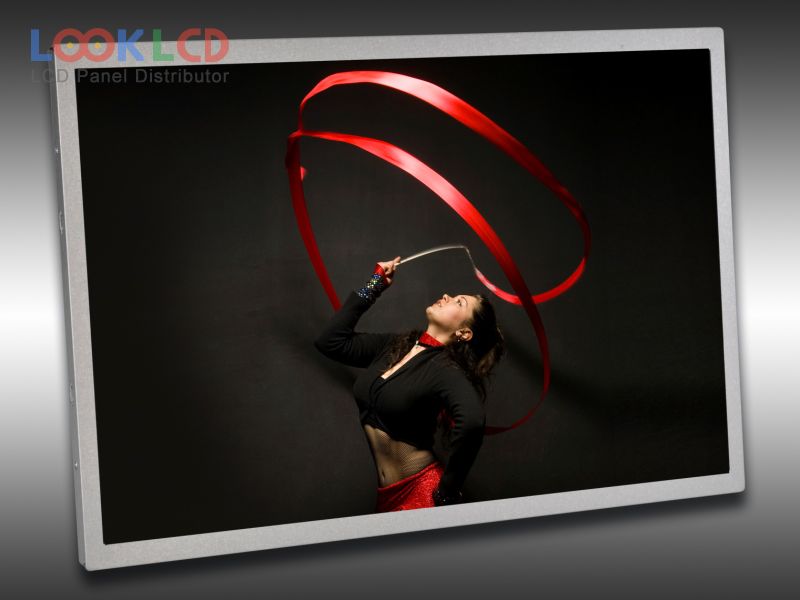

| Part Number | G121I1-L01 |
| Mark | Innolux |
| Gréisst | 12.1 |
| Applikatioun | IA |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 1000:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | G121I1-L01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | MVA, Normally Black, Transmissive |
| aktiv Beräich | 261.12×163.2 mm |
| skizzéieren | 278×184×10.5 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 262K/16.2M (6-bit / 6-bit + FRC), CIE193145% |
| Äntwert Zäit | 15/10 (Typ.)(Tr/Tf) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 9S3PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
