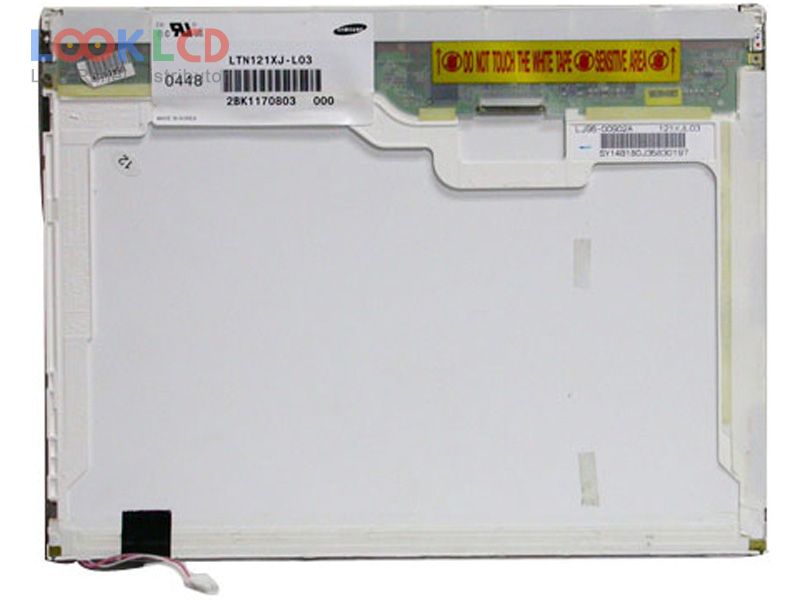

| Part Number | LTN121XJ-L03 |
| Mark | Samsung |
| Gréisst | 12.1 |
| Applikatioun | NBPC |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 150 |
| CR | 200:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN121XJ-L03 5 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 245.76×184.32 mm |
| skizzéieren | 261×199×5 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 150 cd/m² (Typ.) |
| Kontrast Verhältnis | 200:1 (Min.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 6/25 (Typ.)(Tr/Td) |
| Vue Wénkel | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN121AP05-302 | Samsung | 12.1 | 1280×800 |
| LTN121AT02-A01 | Samsung | 12.1 | 1280×800 |
| LTN121AT06-G01 | Samsung | 12.1 | 1280×800 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN121W1-L02 | Samsung | 12.1 | 1280×800 |
| LTN121W1-L03 | Samsung | 12.1 | 1280×800 |
| LTN121X1-L02 | Samsung | 12.1 | 1024×768 |
| LTN121XJ-L03 | Samsung | 12.1 | 1024×768 |
| LTN121XJ-L05 | Samsung | 12.1 | 1024×768 |
| HSD150PX16-A | HannStar | 15.0 | 1024×768 |
| LP125WH2-TLFA | LG Display | 12.5 | 1366×768 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LTD121EXED | TOSHIBA | 12.1 | 1280×800 |
| LTN133AT17-104 | Samsung | 13.3 | 1366×768 |
| LTN141W1-L02 | Samsung | 14.1 | 1280×800 |
| LTN156AT36-W01 | Samsung | 15.6 | 1366×768 |
| LTN156FL01-D01 | Samsung | 15.6 | 3840×2160 |
| N133BGE-E31 | Innolux | 13.3 | 1366×768 |
| TX41D97VC1HAA | KOE | 16.1 | 1400×1050 |
