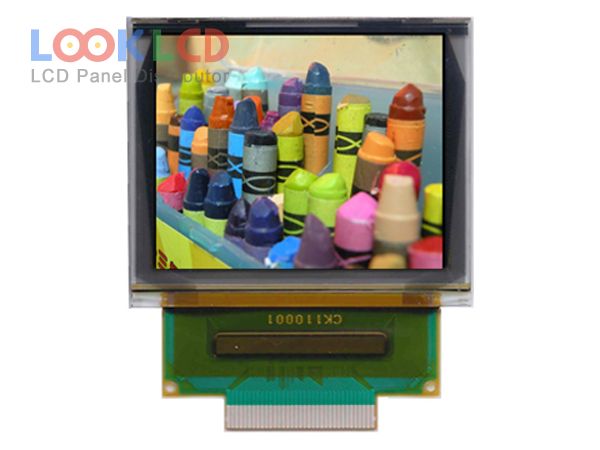

| Part Number | UG-6028GDEBF02 |
| Mark | WiseChip |
| Gréisst | 1.7 |
| Applikatioun | IA |
| Opléisung | 160×128 |
| Zesummesetzung | OLED |
| Hellegkeet | 75 |
| CR | 2000:1 |
| Faarwen | 262K |
| Géigeliicht | self |
| Interface | CPU/RGB/SPI |
| Panel Mark | WiseChip |
| Panel Modell | UG-6028GDEBF02 |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 1.7 inch |
| Resolutioun | 160(RGB)×128 |
| aktiv Beräich | 33.575×26.864 mm |
| skizzéieren | 39.9×34×1.7 mm |
| Uewerfläch | |
| Hellegkeet | 75 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000 : 1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Vue Wénkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Chauffeur ic | COF Built-in SEPS525 |
| Signal Interface | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| Input Volt | 2.8/2.8/14.0V (VDD/VDDIO/VDDH) |
| rohs: | |
| Applikatioun | IA |
