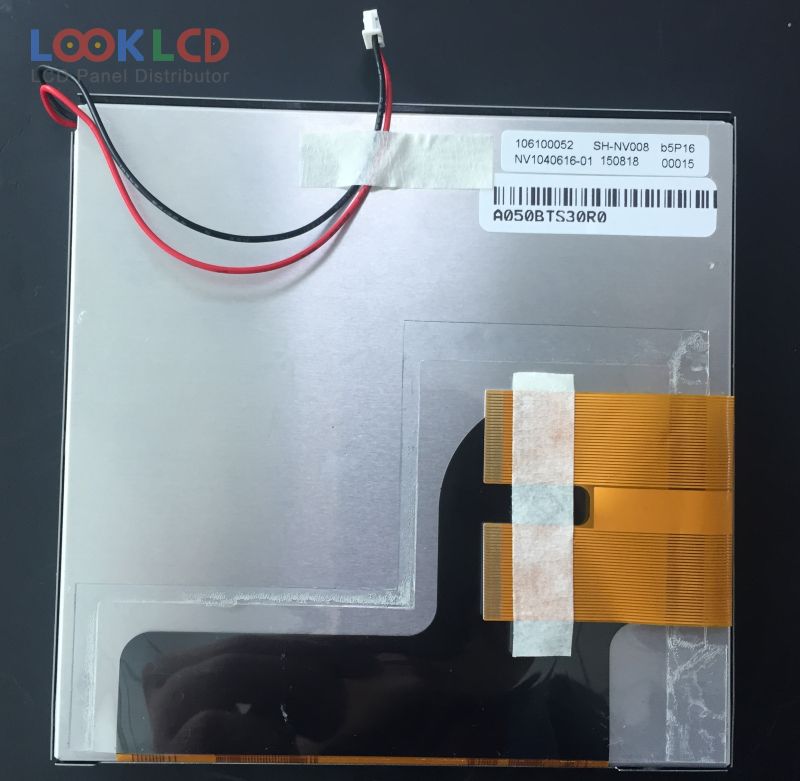

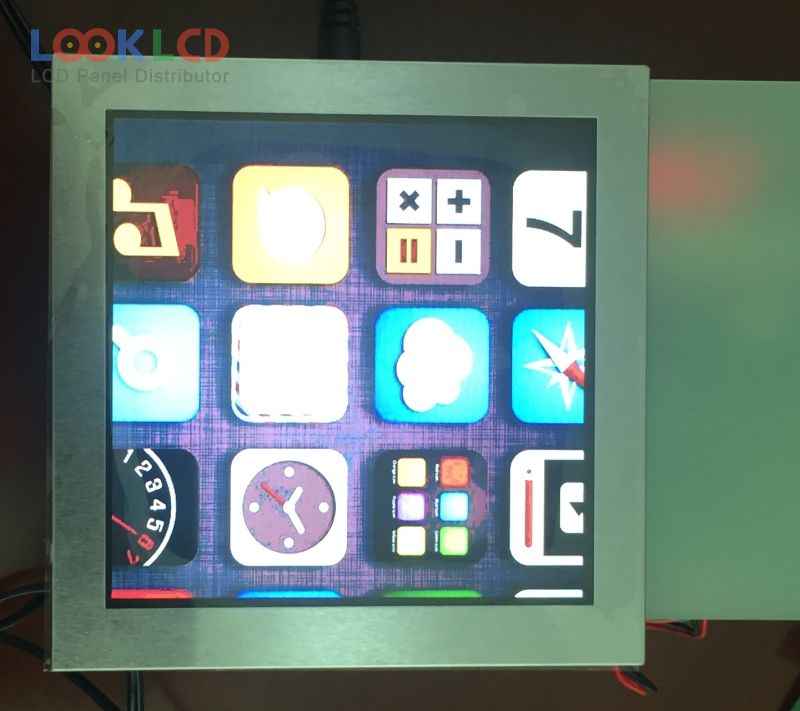

| Part Number | A050BTS30R0 |
| Mark | Aptus |
| Gréisst | 5.0 |
| Applikatioun | IA |
| Opléisung | 480×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 1200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | Aptus |
| Panel Modell | A050BTS30R0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.0 inch |
| Resolutioun | 480(RGB)×480 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 87.3×87.3 mm |
| skizzéieren | 111.55×110 mm |
| Uewerfläch | |
| Hellegkeet | 1200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 50/50/40/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | TTL (1 ch, 6-bit), 60 pins |
| Input Volt | 3.3/9.7/18/-6V (Typ.)(VDD1/VDD2/VGG/VEE) |
| Applikatioun | IA |
