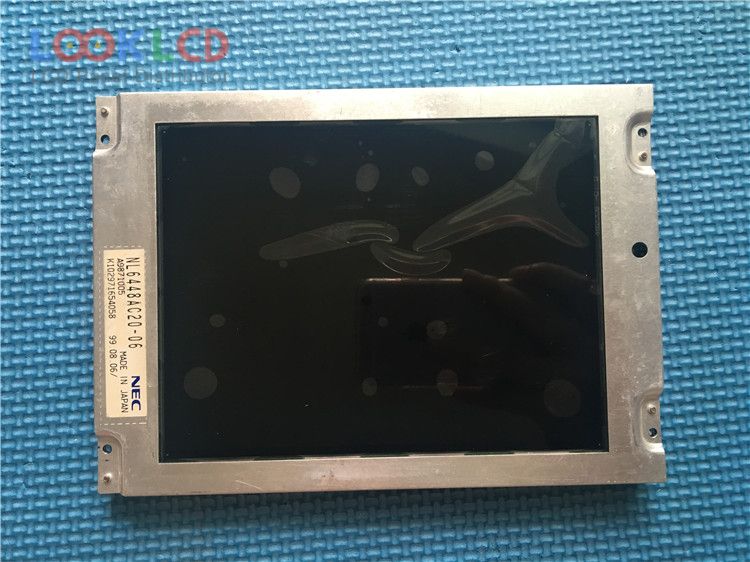

| Part Number | NL6448AC20-06 |
| Mark | NLT |
| Gréisst | 6.5 |
| Applikatioun | IA |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 150:1 |
| Faarwen | 4096/262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | NEC |
| Panel Modell | NL6448AC20-06 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 6.5 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 132.48×99.36 mm |
| skizzéieren | 178.8×126.8 mm |
| Uewerfläch | |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 150:1 (Typ.) |
| weisen Faarwen | 4096/262K (4-bit / 6-bit), CIE193145% |
| Äntwert Zäit | 40 (Typ.)(Tr) |
| Vue Wénkel | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLEmbedded (Inverter) |
| Signal Interface | CMOS (1 ch, 4/6-bit), 31 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | IA |
