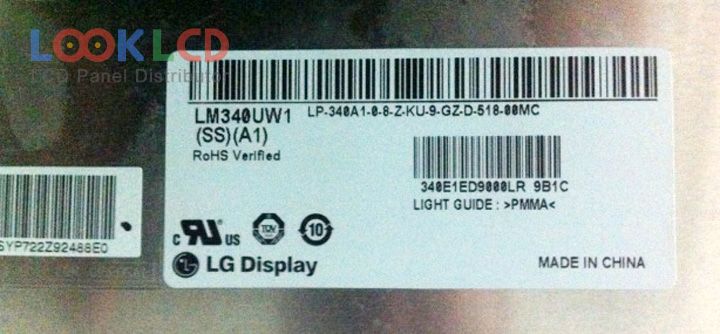

| Part Number | LM340UW1-SSA1 |
| Mark | LG Display |
| Gréisst | 34 |
| Applikatioun | IA |
| Opléisung | 3440×1440 |
| Zesummesetzung | LCM |
| Hellegkeet | 320 |
| CR | 1000:1 |
| Faarwen | 1.07B |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LM340UW1-SSA1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 34 inch |
| Resolutioun | 3440(RGB)×1440 |
| Display Modus | AH-IPS, Normally Black, Transmissive |
| aktiv Beräich | 799.8×334.8 mm |
| skizzéieren | 820.8×361×19.8 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 320 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 1.07B (8-bit + Hi-FRC), sRGB100% |
| Äntwert Zäit | 14 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 12S4PWLEDWithout Driver |
| Signal Interface | LVDS (8 ch, 10-bit), 174 pins |
| Input Volt | 10.0V (Typ.) |
| Applikatioun | IA |
