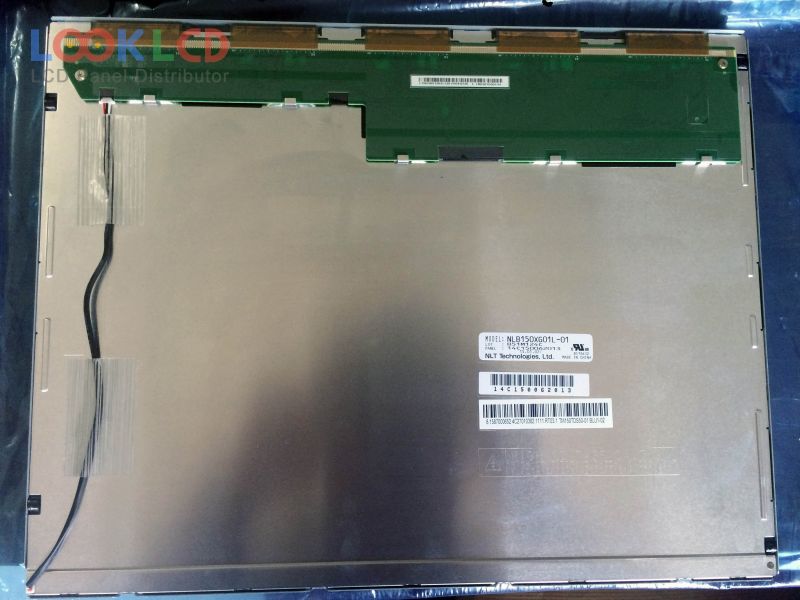

| Part Number | NLB150XG01L-01 |
| Mark | NLT |
| Gréisst | 15.0 |
| Applikatioun | IA |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 600:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | NLT |
| Panel Modell | NLB150XG01L-01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.0 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 304.128×228.096 mm |
| skizzéieren | 326.5×253.5×12.1 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| Äntwert Zäit | 3/5 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
| AA150XN07 | Mitsubishi | 15.0 | 1024×768 |
| G150X1-L02 | Innolux | 15.0 | 1024×768 |
| G150XTN01.1 | AUO | 15.0 | 1024×768 |
| LC150X01-SL01 | LG Display | 15.0 | 1024×768 |
| LC150X02-TL01 | LG Display | 15.0 | 1024×768 |
| LQ150X1LCD3 | SHARP | 15.0 | 1024×768 |
| N150P3-L01 | IDTech | 15.0 | 1400×1050 |
| NL10276BC30-38B | NLT | 15.0 | 1024×768 |
| NLB150XG01L-01 | NLT | 15.0 | 1024×768 |
| SVA150XG10TB | SVA-NEC | 15.0 | 1024×768 |
| AA057VG02 | Mitsubishi | 5.7 | 640×480 |
| DLC0650BMG | Other | 6.5 | 640×480 |
| DLF1095 | LiteMax | 10.4 | 1024×768 |
| FX050700DSCWDG12 | Data Image | 5.7 | |
| G084SN02 V0 | AUO | 8.4 | 800×600 |
| G321EV5B000 | SII | 4.7 | 320×240 |
| LM8V301 | SHARP | 7.7 | 640×480 |
| LQ104V1DG61 | SHARP | 10.4 | 640×480 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| SP24V001 | KOE | 9.4 | 640×480 |
