| Part Number | M220Z1-L05 |
| Mark | Innolux |
| Gréisst | 22.0 |
| Applikatioun | DMPC |
| Opléisung | 1680×1050 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | M220Z1-L05 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 22.0 inch |
| Resolutioun | 1680(RGB)×1050 , WSXGA+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 473.76×296.1 mm |
| skizzéieren | 493.7×320.1 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193192% |
| Äntwert Zäit | 1.3/3.7 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFLWithout Driver |

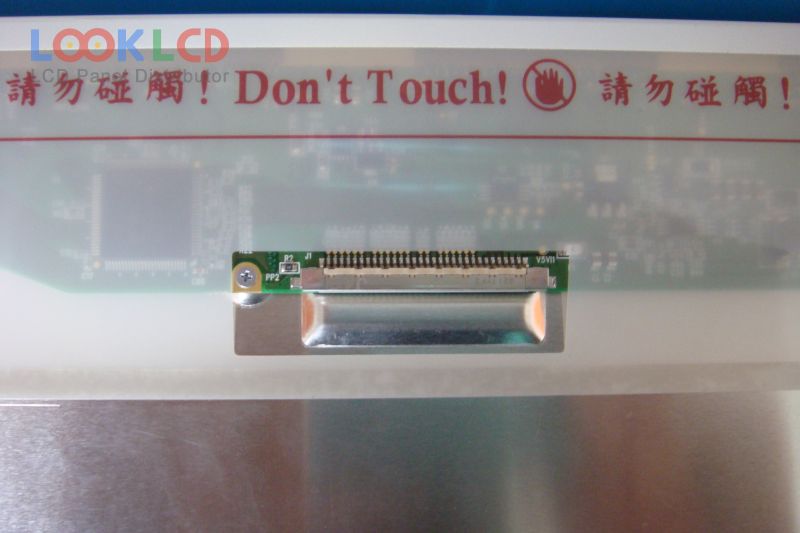

| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
