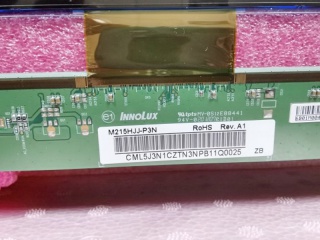

| Part Number | M215HJJ-P3N |
| Mark | Innolux |
| Gréisst | 21.5 |
| Applikatioun | Desktop Monitor |
| Opléisung | 1920×1080 |
| Zesummesetzung | CELL, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 3000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Fabrikant beschwéiert | Innolux |
| Modell Numm | M215HJJ-P3N |
| Écran Gréisst | 21.5 inch |
| Écran Typ | CELL, a-Si TFT-LCD |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 102PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 476.064 × 267.786 (H×V) |
| Kontur (mm) | 487.456 × 270.18 × 1.29 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 0 cd/m² |
| Kontrast Verhältnis | 3000 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥20) |
| Äntwert | 20/5 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | MVA, Normally Black, Transmissive |
| Glas deck | 0.50+0.50 mm |
| transmissivitéit | 4.4% (Typ.)(with Polarizer) |
| Faarfdéift | 16.7M |
| mass | TBD |
| benotzt fir | Desktop Monitor |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Chauffer ic Lëscht | Built-in COF 6 source chips |
| Signal Typ | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Spannungsversuergung | 5.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M215H1-L03 | Innolux | 21.5 | 1920×1080 |
| M215H3-LA1 | Innolux | 21.5 | 1920×1080 |
| M215HGK-L30 | Innolux | 21.5 | 1920×1080 |
| M215HJJ-L30 Rev.B1 | Innolux | 21.5 | 1920×1080 |
| M215HJK-L3B | Innolux | 21.5 | 1920×1080 |
| M215HNE-L30 | Innolux | 21.5 | 1920×1080 |
| M215HTN01.1 | AUO | 21.5 | 1920×1080 |
| M215HW01 V0 | AUO | 21.5 | 1920×1080 |
| M215HW01 V5 | AUO | 21.5 | 1920×1080 |
| M215HW01 VB | AUO | 21.5 | 1920×1080 |
