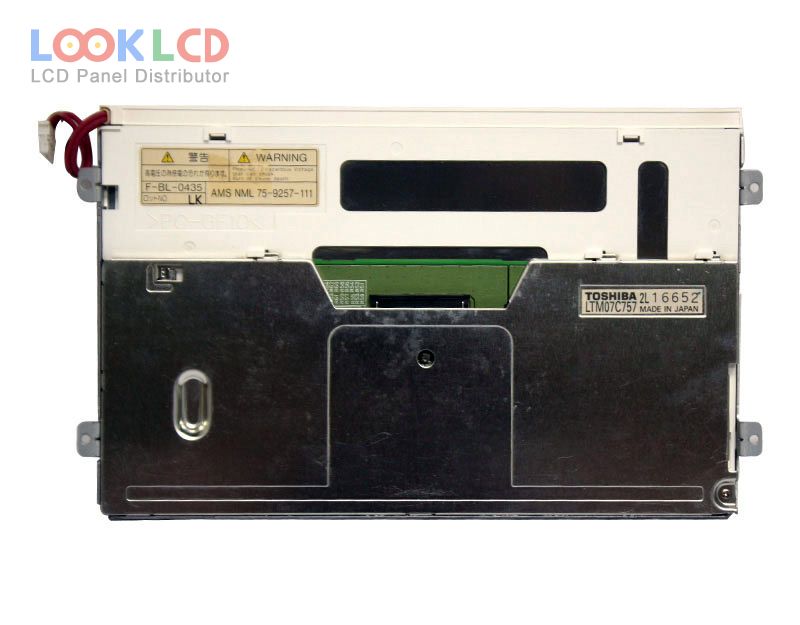

| Part Number | LTM07C757 |
| Mark | TOSHIBA |
| Gréisst | 7.7 |
| Applikatioun | |
| Opléisung | 400×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 250:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | TOSHIBA |
| Panel Modell | LTM07C757 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.7 inch |
| Resolutioun | 400(RGB)×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 169.2×98.982 mm |
| skizzéieren | 186.85×119.3 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 70/40 (Max.)(Tr/Td) |
| Vue Wénkel | 55/55/30/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.)(VDD) |
