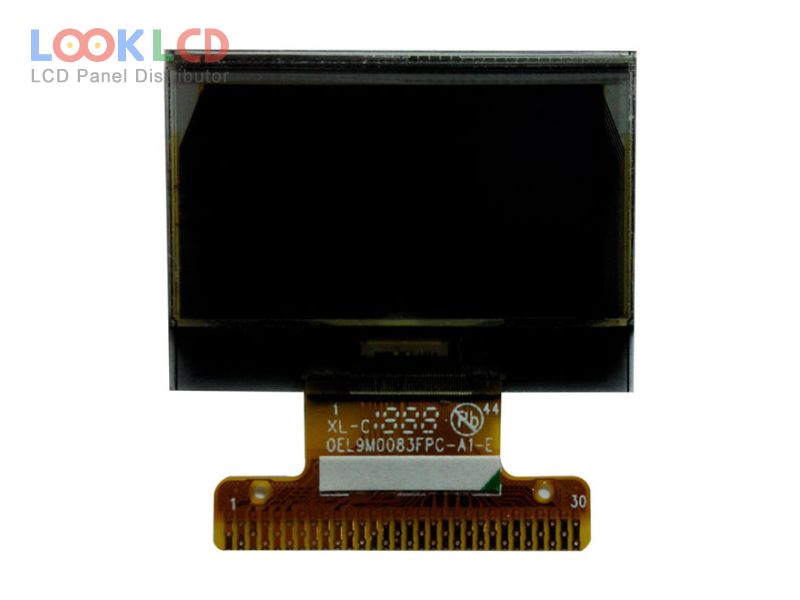

| Part Number | OEL9M0083-R-E |
| Mark | Other |
| Gréisst | 0.96 |
| Applikatioun | |
| Opléisung | 128×64 |
| Zesummesetzung | OLED |
| Hellegkeet | |
| CR | 10000:1 |
| Faarwen | Mono(Red) |
| Géigeliicht | self |
| Interface | CPU/SPI/I²C |
| Panel Mark | TRULY |
| Panel Modell | OEL9M0083-R-E |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 0.96 inch |
| Resolutioun | 128×64 |
| aktiv Beräich | 21.74×11.175 mm |
| skizzéieren | 26.7×19.26×1.65 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | 10000 : 1 (Min.) |
| weisen Faarwen | Mono(Red) (1-bit) |
| Vue Wénkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequenz | 100Hz |
| Chauffeur ic | COG Built-in SH1106G |
| Signal Interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
