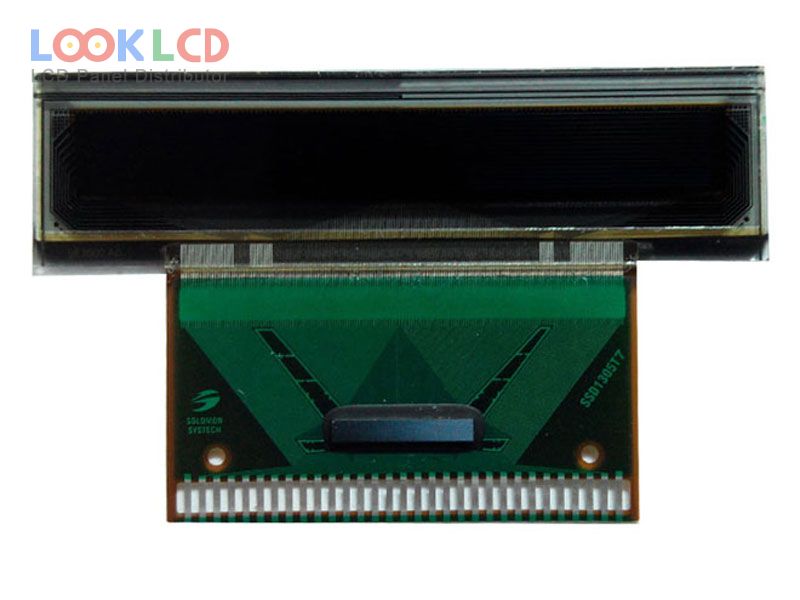

| Part Number | OEL9M0078-R-E |
| Mark | Other |
| Gréisst | 1.45 |
| Applikatioun | IA |
| Opléisung | 132×16 |
| Zesummesetzung | OLED |
| Hellegkeet | |
| CR | 10000:1 |
| Faarwen | Mono(Red) |
| Géigeliicht | self |
| Interface | CPU/SPI/I²C |
| Panel Mark | TRULY |
| Panel Modell | OEL9M0078-R-E |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 1.45 inch |
| Resolutioun | 132×16 |
| aktiv Beräich | 36.412×4.62 mm |
| skizzéieren | 43.06×11.75×1.6 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | 10000 : 1 (Min.) |
| weisen Faarwen | Mono(Red) (1-bit) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Chauffeur ic | TAB Built-in SSD1305T7R1 |
| Signal Interface | CPU/SPI/I²C, 31 pins |
| rohs: | |
| Applikatioun | IA |
