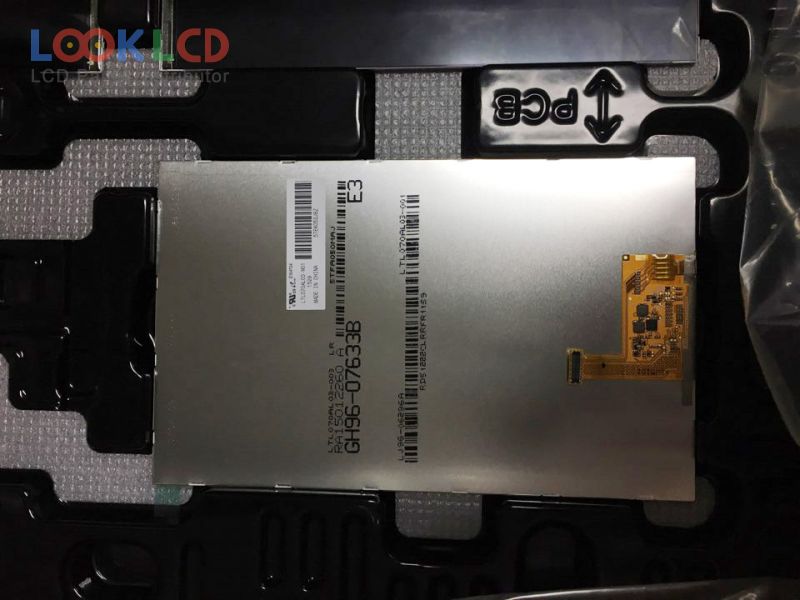

| Part Number | LTL070AL03 |
| Mark | Samsung |
| Gréisst | 7.0 |
| Applikatioun | PAD |
| Opléisung | 800×1280 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | SAMSUNG |
| Panel Modell | LTL070AL03 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×1280 , WXGA |
| Display Modus | PLS, Normally Black, Transmissive |
| aktiv Beräich | 94.2×150.72 mm |
| skizzéieren | 99.7×160.93×3.6 mm |
| Uewerfläch | Hard coating (2H), Antireflection |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 stringsWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 34 pins |
| Input Volt | 1.8/3.3V (Typ.)(VDD/VDD3) |
| Applikatioun | PAD |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LQ070Y5DG36 | SHARP | 7.0 | 800×480 |
| LTL070AL01-L01 | Samsung | 7.0 | 1280×800 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| LTL070NL01-002 | Samsung | 7.0 | 1024×600 |
| LTL070NL01-801 | Samsung | 7.0 | 1024×600 |
| LTL070NL02-W02 | Samsung | 7.0 | 1024×600 |
| LTL075PL01-001 | Samsung | 7.5 | 1050×1400 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| BF097XN | Innolux | 9.7 | 1024×768 |
| HT121WX2-211 | HYDIS | 12.1 | 1280×800 |
| HV121P01-100 | HYDIS | 12.1 | 1400×1050 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
| P080KDZ-3Z1 | Innolux | 8.0 | 1200×1920 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
| YX101GL-01A | SEBO | 10.1 | 1280×800 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
