| Part Number | LTA400HM23 |
| Mark | Samsung |
| Gréisst | 40 |
| Applikatioun | LCTV |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 5000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |

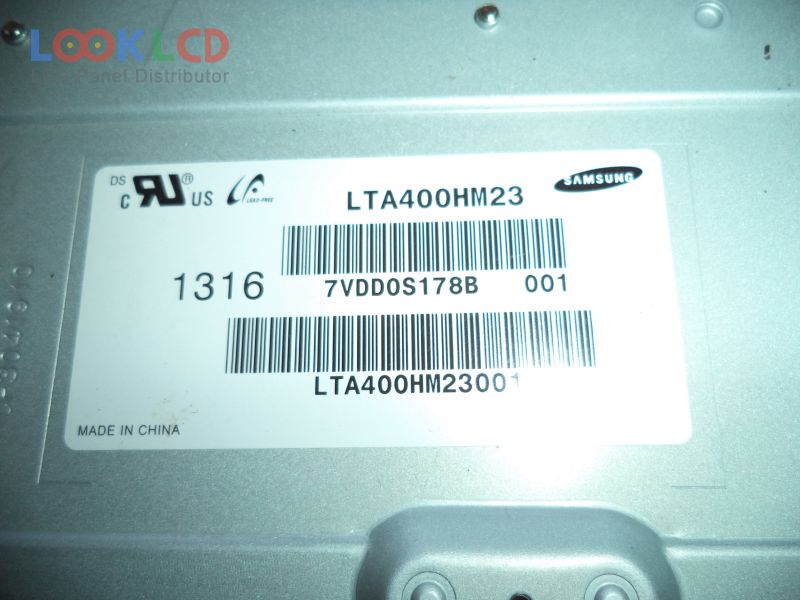

| Panel Modell | LTA400HM23 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 40 inch |
| Resolutioun | 1920×1080(RGB) , FHD |
| Display Modus | S-PVA, Normally Black, Transmissive |
| aktiv Beräich | 885.6×498.15 mm |
| skizzéieren | 914.4×530.6 mm |
| Uewerfläch | Antiglare (Haze 5.5%), Hard coating (2H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 5000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193170% |
| Äntwert Zäit | 8 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |

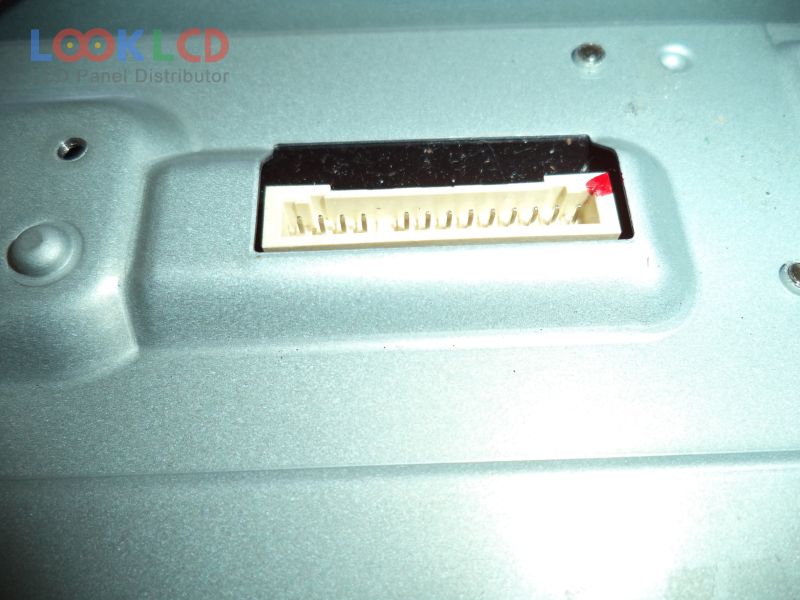

| Lampe Typ | WLEDEmbedded (LED Driver) |

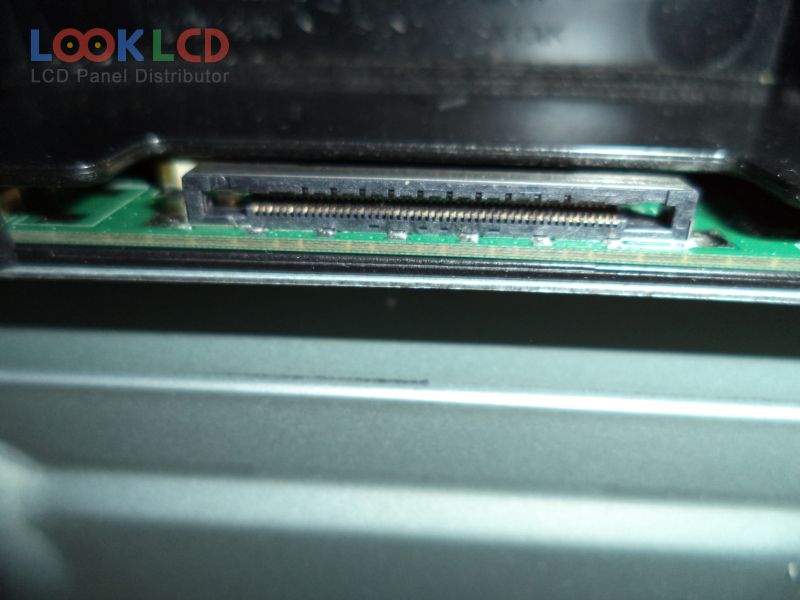

| Signal Interface | LVDS (2 ch, 8-bit), 51 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
