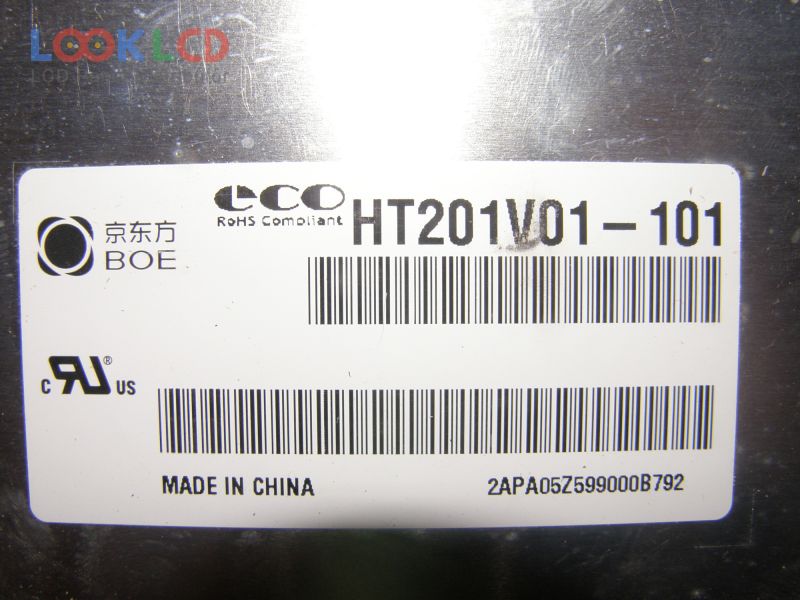

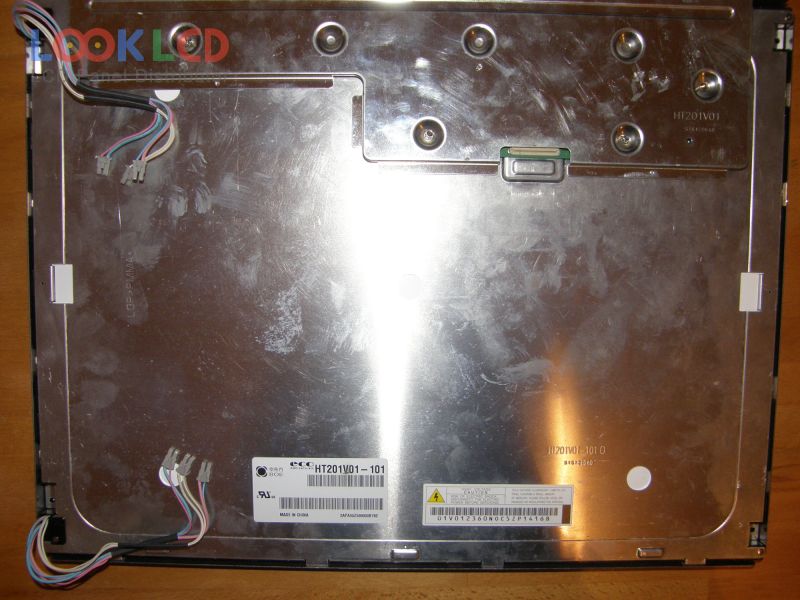

| Part Number | HT201V01-101 |
| Mark | BOE |
| Gréisst | 20.1 |
| Applikatioun | LCTV |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 700:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | BOE |
| Panel Modell | HT201V01-101 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 20.1 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 408×306 mm |
| skizzéieren | 448.6×339.6 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 3/5 (Typ.)(Tr/Td) |
| Vue Wénkel | 75/75/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6 pcsCCFLWithout Driver |
| Signal Interface | TTL (1 ch, 8-bit), 50 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | LCTV |
