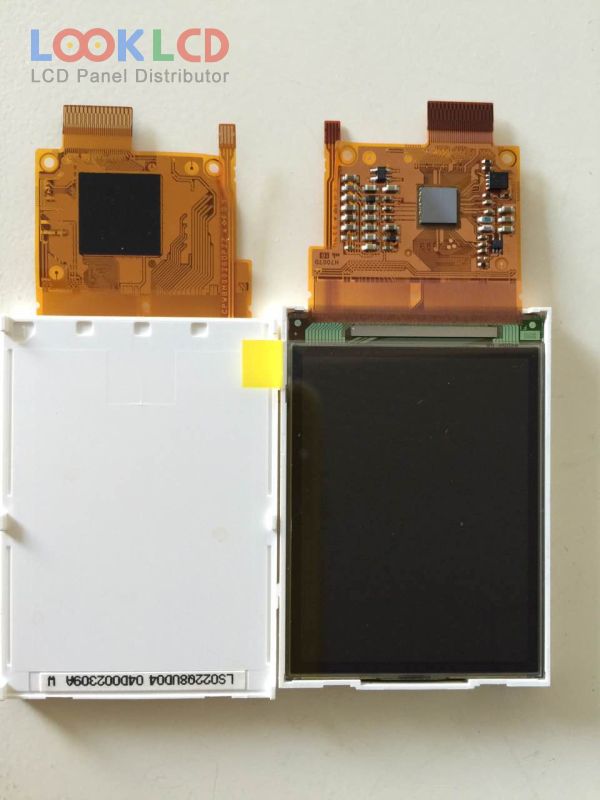

| Part Number | LS022Q8UD04 |
| Mark | SHARP |
| Gréisst | 2.2 |
| Applikatioun | MPH |
| Opléisung | 240×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 135 |
| CR | 100:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | CPU |
| Panel Mark | SHARP |
| Panel Modell | LS022Q8UD04 |
| Panel Typ | CG-Silicon , LCM |
| Panel Gréisst | 2.2 inch |
| Resolutioun | 240(RGB)×320 , QVGA |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 33.84×45.12 mm |
| skizzéieren | 41×88.37 mm |
| Uewerfläch | |
| Hellegkeet | 135 cd/m² (Typ.) |
| Kontrast Verhältnis | 100:1 (Typ.)(Transmissive) |
| weisen Faarwen | 262K |
| Äntwert Zäit | 13/35 (Typ.)(Tr/Td) |
| Vue Wénkel | 40/40/40/45 (Typ.)(CR≥3)(L/R/U/D) |
| Lampe Typ | 4S1PWLEDWithout Driver |
| Signal Interface | CPU, 33 pins |
| Input Volt | 3.0V (Typ.)(VDD) |
| Applikatioun | MPH |
