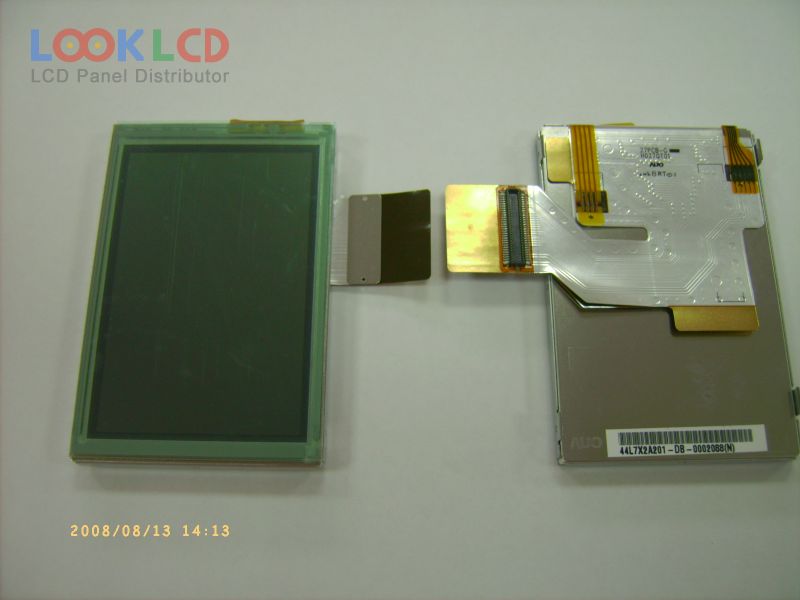

| Part Number | H027QT01 |
| Mark | AUO |
| Gréisst | 2.7 |
| Applikatioun | MPH |
| Opléisung | 208×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 60 |
| CR | 50:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | AU Optronics |
| Panel Modell | H027QT01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 2.7 inch |
| Resolutioun | 208(RGB)×320 |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 36.816×56.64 mm |
| skizzéieren | 45.8×69.17 mm |
| Uewerfläch | |
| Hellegkeet | 60 cd/m² (Typ.) |
| Kontrast Verhältnis | 50:1 (Typ.)(Transmissive)20:1 (Typ.)(Reflective) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 10/30 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/45/45 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 2S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| Input Volt | 3.3/5/5/3.3/12/-12V (Typ.)(DVCC/AVDD/AVDD1/AVDD2/VGH/VGL) |
| Applikatioun | MPH |
