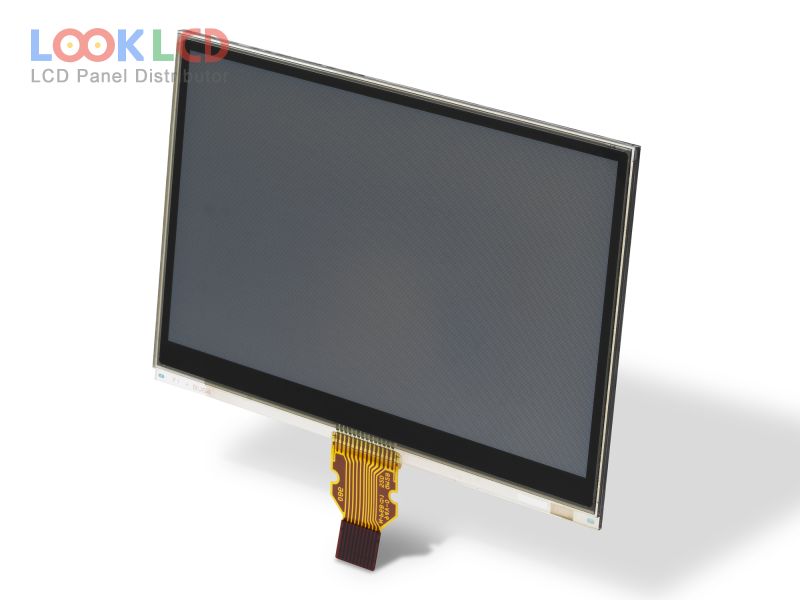

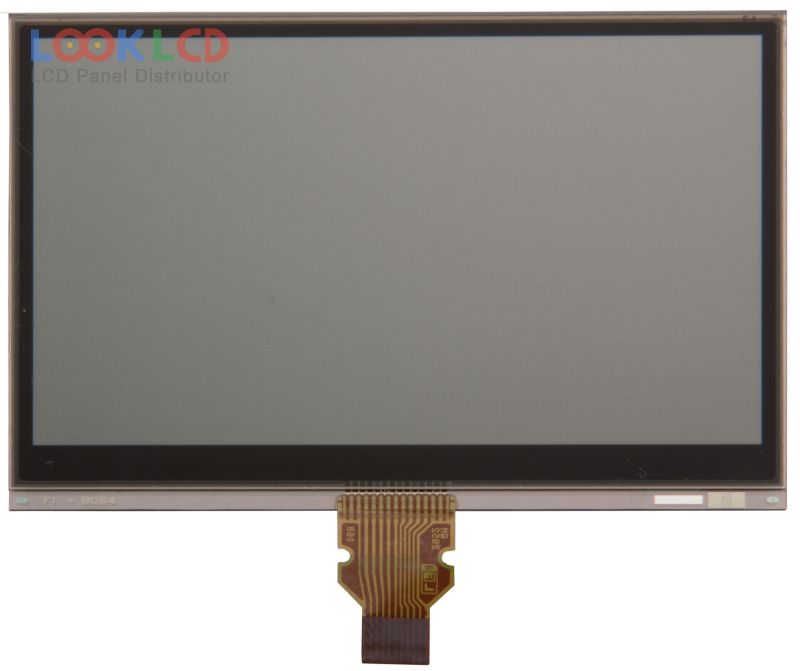

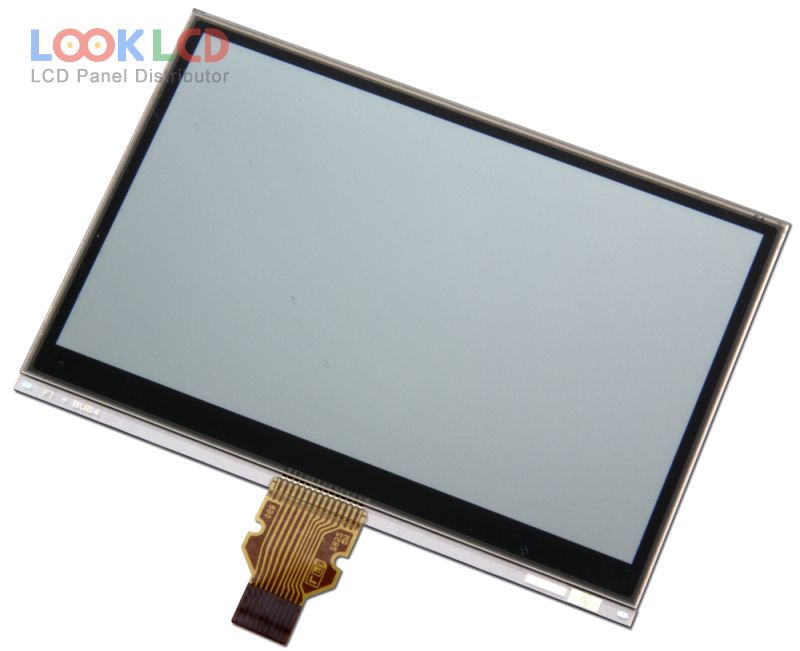

| Part Number | LS027B7DH01 |
| Mark | SHARP |
| Gréisst | 2.7 |
| Applikatioun | HHP |
| Opléisung | 400×240 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | Monochrome |
| Géigeliicht | No B/L |
| Interface | SPI |
| Panel Mark | SHARP |
| Panel Modell | LS027B7DH01 |
| Panel Typ | CG-Silicon , LCM |
| Panel Gréisst | 2.7 inch |
| Resolutioun | 400×240 , WQVGA |
| Display Modus | Transflective |
| aktiv Beräich | 58.8×35.28 mm |
| skizzéieren | 62.8×42.82 mm |
| Uewerfläch | Hard coating (3H) |
| Hellegkeet | |
| Kontrast Verhältnis | 14:1 (Typ.)(Reflective) |
| weisen Faarwen | Monochrome (1-bit) |
| Äntwert Zäit | 10/20 (Typ.)(Tr/Td) |
| Vue Wénkel | 55/55/60/60 (Min.)(CR≥2)(L/R/U/D) |
| Lampe Typ | No B/L |
| Signal Interface | SPI, 10 pins |
| Input Volt | 5.0/5.0V (Typ.)(VDD/VDDA) |
| Applikatioun | HHP |
| LQ027A3DA01 | SHARP | 2.7 | 320×240 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| OEL9M0065-W-E | Other | 2.7 | 256×64 |
| OEL9M5003-R-E | Other | 2.7 | 128×64 |
| UG-2864ASGIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYIG01 | WiseChip | 2.7 | 128×64 |
| 28QVF1J | SII | 2.8 | 240×320 |
| 32WVF0H | SII | 3.2 | 480×800 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| G050VVN01.0 | AUO | 5.0 | 480×800 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ038Q7DB03A | SHARP | 3.8 | 240×320 |
| LQ040Y3DX80 | SHARP | 4.0 | 480×800 |
| TX09D30VM1CCA | KOE | 3.5 | 240×320 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
