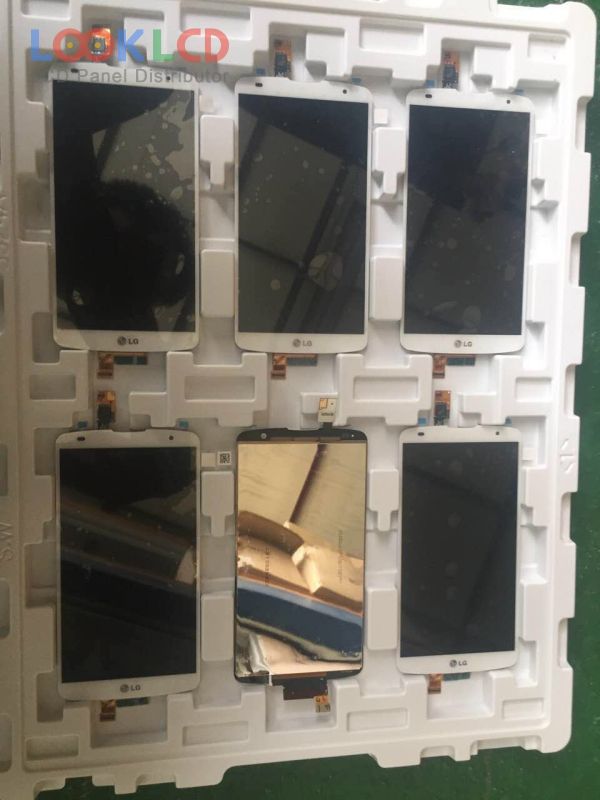

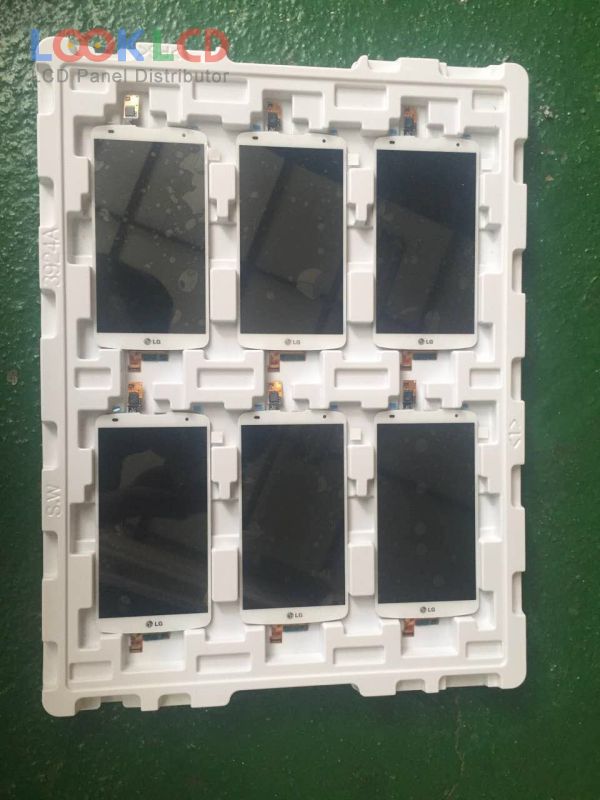

| Part Number | LH600WF2-SD01 |
| Mark | LG Display |
| Gréisst | 6.0 |
| Applikatioun | MPH |
| Opléisung | 1080×1920 |
| Zesummesetzung | Assembly |
| Hellegkeet | 450 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | LG Display |
| Panel Modell | LH600WF2-SD01 |
| Panel Typ | LTPS TFT-LCD , Assembly |
| Panel Gréisst | 6.0 inch |
| Resolutioun | 1080(RGB)×1920 , FHD |
| aktiv Beräich | 74.52×132.48 mm |
| skizzéieren | 79.6×155.52 mm |
| Uewerfläch | Clear |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | MIPI (4 data lanes), 30 pins |
| Input Volt | 1.8/5.5/-5.4V (Typ.)(IOVCC/VSP/VSN) |
| Applikatioun | MPH |
| ED060SC4 | E Ink | 6.0 | 800×600 |
| ED060SCF | E Ink | 6.0 | 600×800 |
| ED060SCM | E Ink | 6.0 | 600×800 |
| ED060XG1 | E Ink | 6.0 | 758×1024 |
| LB060X02-RD01 | LG Display | 6.0 | 1024×768 |
| LH600WF2-SD01 | LG Display | 6.0 | 1080×1920 |
| TFD60W12-B | TOSHIBA | 6.0 | 320×234 |
| TM060RDH01 | Tianma | 6.0 | 800×480 |
| TM060RDH03 | Tianma | 6.0 | 800×480 |
| CT035TN02 | Innolux | 3.5 | 320×480 |
| H497DAN01.0 | AUO | 5.0 | 1080×1920 |
| LH530WX1-SH02 | LG Display | 5.3 | 720×1280 |
| LQ043Y1DX01D | SHARP | 4.3 | 480×800 |
| LS020B8UD02 | SHARP | 2.0 | 176×220 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| LS030Y3DX01 | SHARP | 3.0 | 480×800 |
| LS038Y3LX01 | SHARP | 3.8 | 480×800 |
| LS055T3SX05 | SHARP | 5.5 | 1080×1920 |
| PJ050IA-14A | Innolux | 5.0 | 720×1280 |
