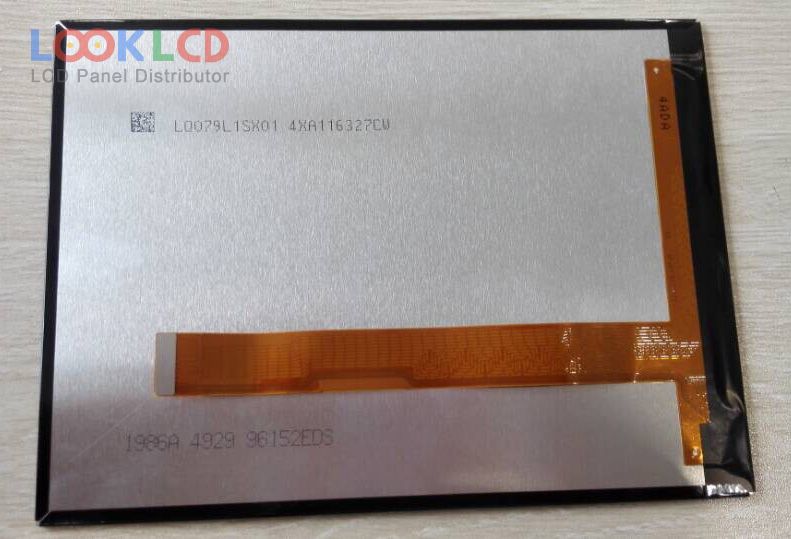

| Part Number | LQ079L1SX01 |
| Mark | SHARP |
| Gréisst | 7.9 |
| Applikatioun | PAD |
| Opléisung | 1536×2048 |
| Zesummesetzung | LCM |
| Hellegkeet | 460 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | SHARP |
| Panel Modell | LQ079L1SX01 |
| Panel Typ | IGZO TFT-LCD , LCM |
| Panel Gréisst | 7.9 inch |
| Resolutioun | 1536(RGB)×2048 , QXGA |
| Display Modus | Normally Black, Transmissive |
| aktiv Beräich | 119.808×159.744 mm |
| skizzéieren | 125.55×171.3×3.15 mm |
| Uewerfläch | |
| Hellegkeet | 460 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S4PWLEDWithout Driver |
| Signal Interface | MIPI (2 ch, 4 data lanes), 50 pins |
| Input Volt | 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) |
| Applikatioun | PAD |
