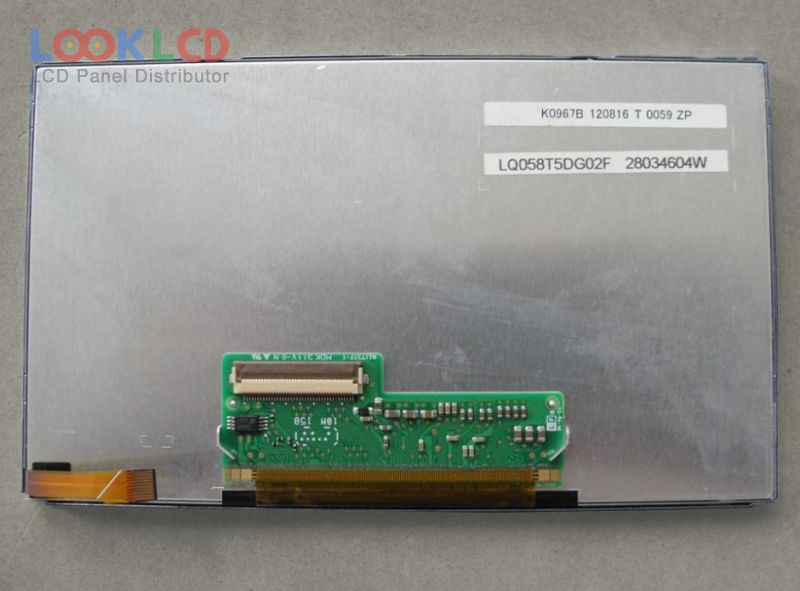

| Part Number | LQ058T5DG02F |
| Mark | SHARP |
| Gréisst | 5.8 |
| Applikatioun | CNS |
| Opléisung | 480×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 420 |
| CR | |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ058T5DG02F |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.8 inch |
| Resolutioun | 480(RGB)×240 , WQVGA |
| Display Modus | Transmissive |
| aktiv Beräich | 128.4×70.92 mm |
| skizzéieren | 139×82.7 mm |
| Uewerfläch | |
| Hellegkeet | 420 cd/m² (Typ.) |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Lampe Typ | WLED |
| Signal Interface | Parallel RGB (1 ch, 6-bit) |
| rohs: | |
| Applikatioun | CNS |
