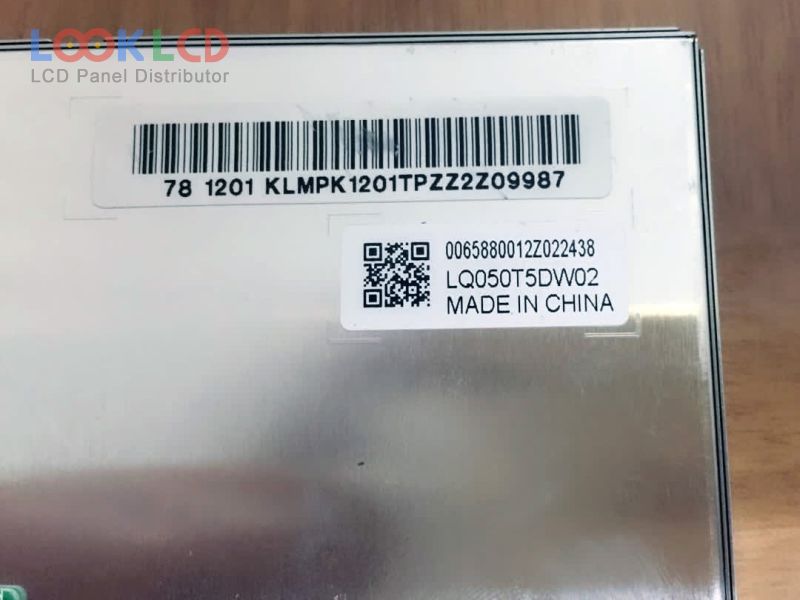

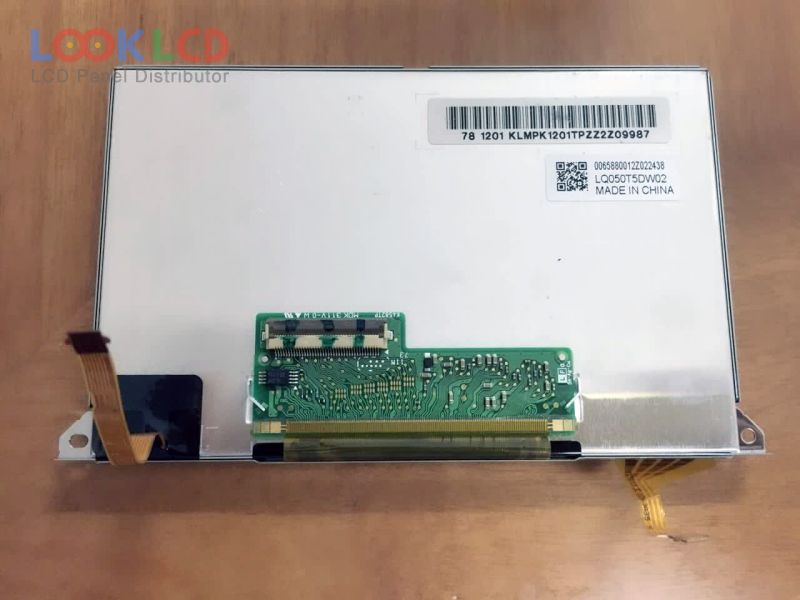

| Part Number | LQ050T5DW02 |
| Mark | SHARP |
| Gréisst | 5.0 |
| Applikatioun | CNS |
| Opléisung | 400×240 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ050T5DW02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.0 inch |
| Resolutioun | 400×240(RGB) , WQVGA |
| Display Modus | ASV, Normally Black, Transmissive |
| aktiv Beräich | 108×64.8 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | 1200:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 15/10 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/45/45 (Typ.)(CR≥200)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LQ050T1SX02 | SHARP | 5.0 | 1080×1920 |
| LQ050T1SX05(G) | SHARP | 5.0 | 1080×1920 |
| LQ050T3GG01 | SHARP | 5.0 | 400×234 |
| LQ050T5DG01 | SHARP | 5.0 | 400×240 |
| LQ050T5DG02 | SHARP | 5.0 | 400×240 |
| LQ050T5DW02 | SHARP | 5.0 | 400×240 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| AT062TN12 | Innolux | 6.2 | |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| HSD050I9W1-A00 | HannStar | 5.0 | 480×272 |
| LB043WQ4-TD01 | LG Display | 4.3 | 480×272 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| PM065WX3 | E Ink | 6.5 | 800×480 |
| PM070WT2 | E Ink | 7.0 | 800×480 |
