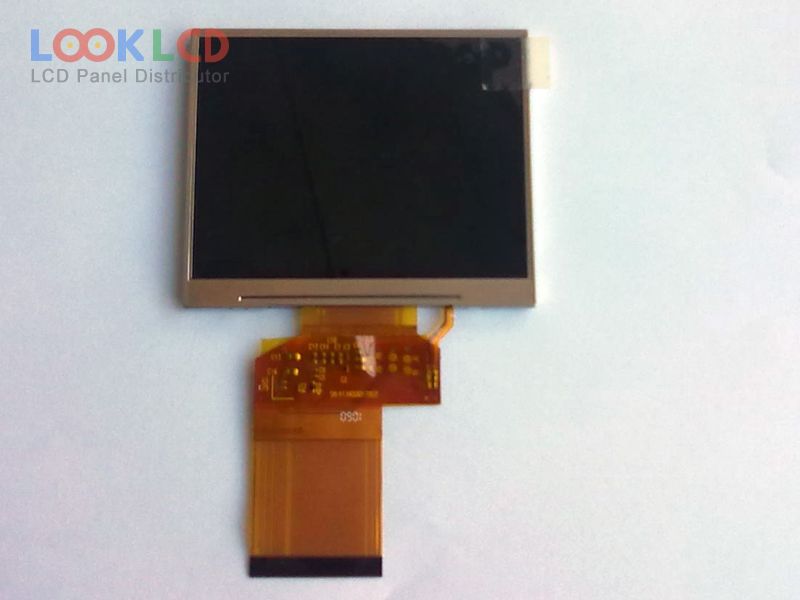

| Part Number | LQ035NC111 |
| Mark | Innolux |
| Gréisst | 3.5 |
| Applikatioun | DSC |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 400:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Parallel/Serial |
| Panel Mark | ChiHsin |
| Panel Modell | LQ035NC111 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.5 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 70.08×52.56 mm |
| skizzéieren | 76.9×63.9×3.46 mm |
| Uewerfläch | |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193160% |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 6S1PWLEDWithout Driver |
| Signal Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | DSC |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| LQ035Q1DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG11 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| 990000738 | TPO | 3.5 | 320×240 |
| A027DN01 VR | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| A030DN04 V0 | AUO | 3.0 | 320×240 |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LS020A8DX02 | SHARP | 2.0 | 320×240 |
| PD035OX1 | E Ink | 3.5 | 320×234 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
