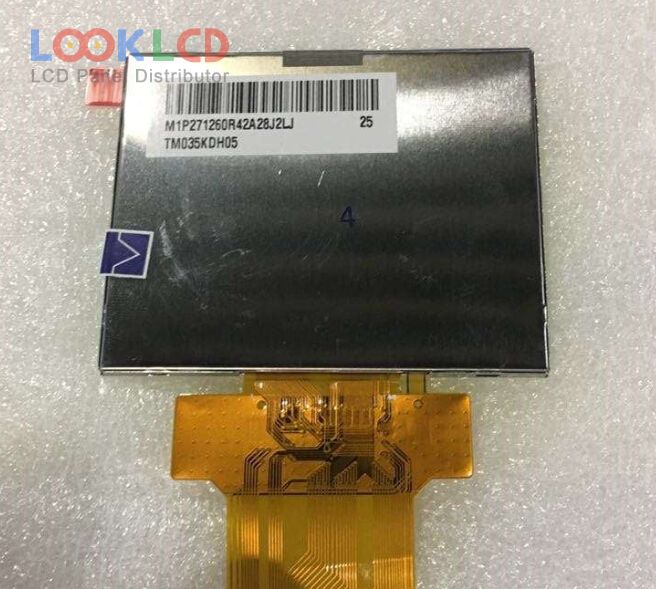

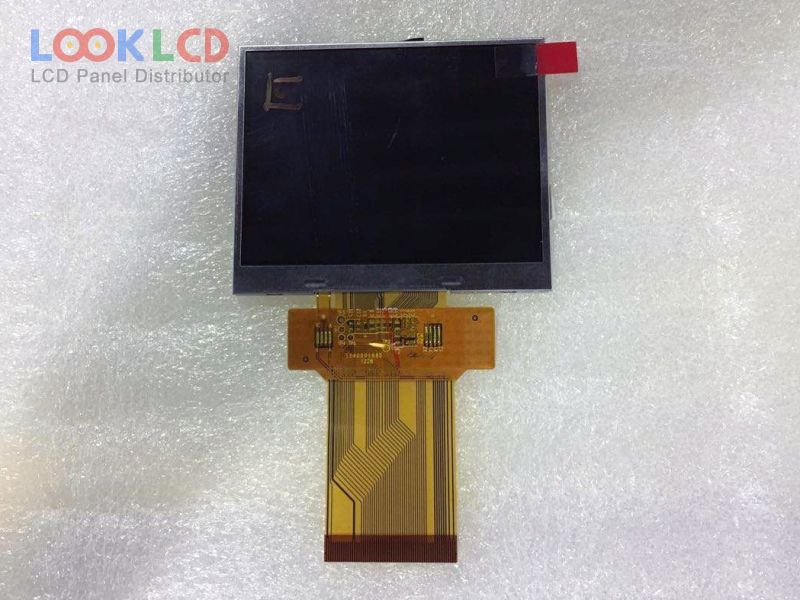

| Part Number | TM035KDH05 |
| Mark | Tianma |
| Gréisst | 3.5 |
| Applikatioun | DSC |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 420 |
| CR | 350:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Parallel/Serial |
| Panel Mark | TIANMA |
| Panel Modell | TM035KDH05 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.5 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 70.08×52.56 mm |
| skizzéieren | 76.9×63.9×3 mm |
| Uewerfläch | Clear, Hard coating (3H) |
| Hellegkeet | 420 cd/m² (Typ.) |
| Kontrast Verhältnis | 350:1 (Typ.) |
| weisen Faarwen | 16.7M , CIE193150% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S1PWLEDWithout Driver |
| Signal Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | DSC |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
| TM035NDH04 | Tianma | 3.5 | 272×480 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TM035PDZ15 | Tianma | 3.5 | 320×480 |
| TM035WBHG01 | Tianma | 3.5 | 480×640 |
| A015AN03 | AUO | 1.46 | 280×220 |
| A018AN03 V1 | AUO | 1.8 | 280×220 |
| A027DN01 V1 | AUO | 2.7 | 320×240 |
| A027DN01 VQ | AUO | 2.7 | 320×240 |
| A027DN01 VR | AUO | 2.7 | 320×240 |
| LQ027A3DA01 | SHARP | 2.7 | 320×240 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LS025A8DZ01S | SHARP | 2.5 | 320×240 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| UP018D11 | UNIPAC | 1.8 | 528×220(dot) |
