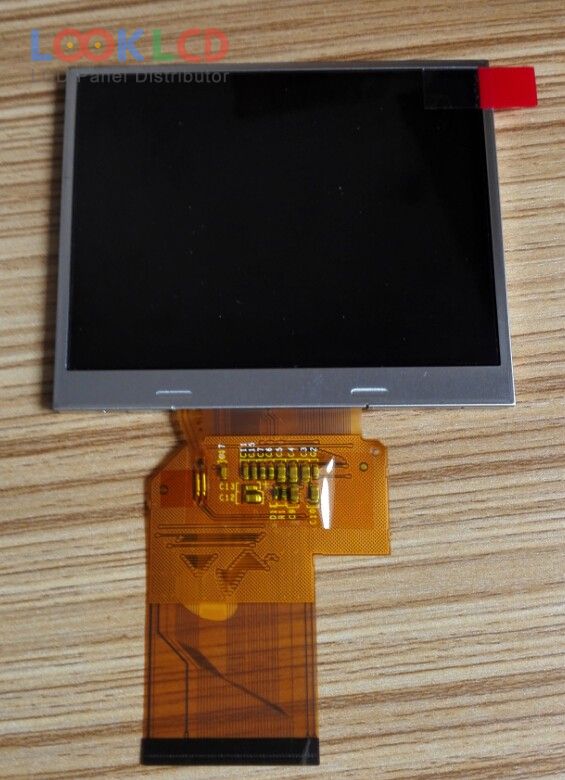

TM035KDH16-09

TM035KDH16-09
TM035KDH16-09
TM035KDH16-09 thumb TM035KDH16-09 thumb
Mark
Tianma
Gréisst
3.5
Applikatioun
DSC
Opléisung
320×240
Zesummesetzung
LCM
Hellegkeet
330
CR
500:1
Faarwen
16.7M
Backlight
WLED
Interface
Parallel/Serial
In Stock
1708
Spezifikatioune

Part Number TM035KDH16-09
MarkTianma
Gréisst3.5
ApplikatiounDSC
Opléisung320×240
ZesummesetzungLCM
Hellegkeet330
CR500:1
Faarwen16.7M
GéigeliichtWLED
InterfaceParallel/Serial
Panel MarkTIANMA
Panel ModellTM035KDH16-09
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst3.5 inch
Resolutioun320(RGB)×240 , QVGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich70.08×52.56 mm
skizzéieren76.9×63.9×3.35 mm
UewerflächAntiglare
Hellegkeet330 cd/m² (Typ.)
Kontrast Verhältnis500:1 (Typ.)
weisen Faarwen16.7M (8-bit), CIE193150%
Äntwert Zäit20 (Typ.)(Tr+Td)
Vue Wénkel70/70/60/70 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ6S1PWLEDWithout Driver
Signal InterfaceDigital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins
Input Volt3.3V (Typ.)
ApplikatiounDSC
