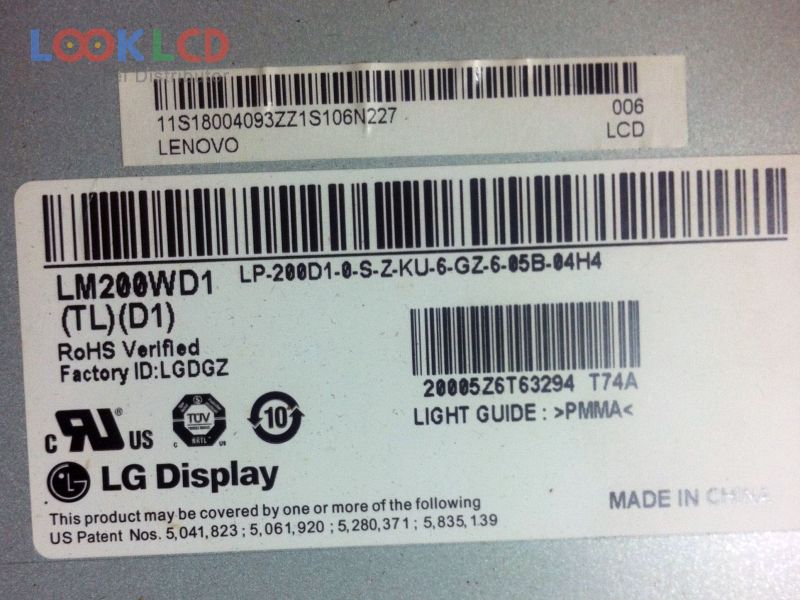

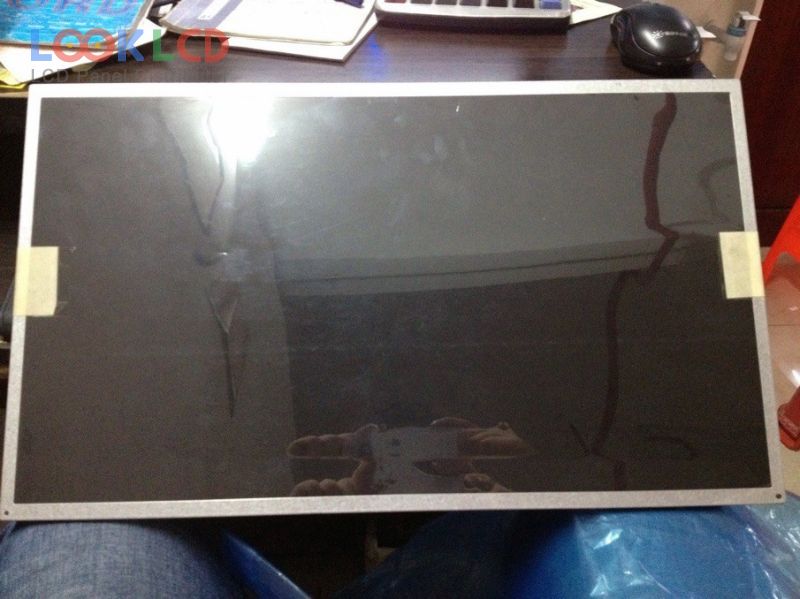

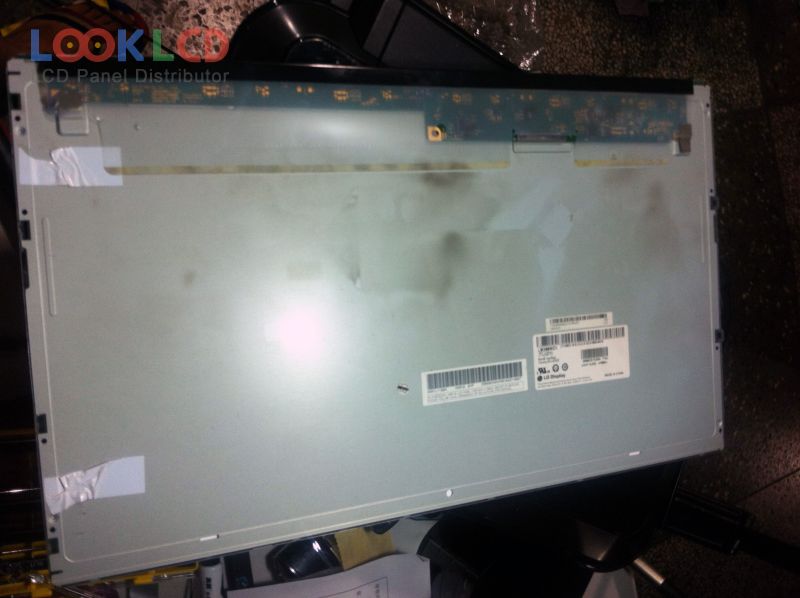

| Part Number | LM200WD1-TLD1 |
| Mark | LG Display |
| Gréisst | 20.0 |
| Applikatioun | DMPC |
| Opléisung | 1600×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LM200WD1-TLD1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 20.0 inch |
| Resolutioun | 1600(RGB)×900 , HD+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 442.8×249.075 mm |
| Uewerfläch | |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 5 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | CCFL |
| Signal Interface | LVDS (2 ch, 8-bit) |
| Applikatioun | DMPC |
