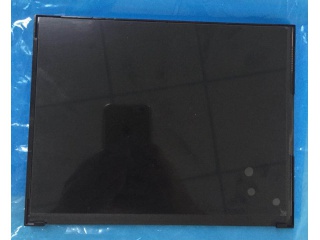

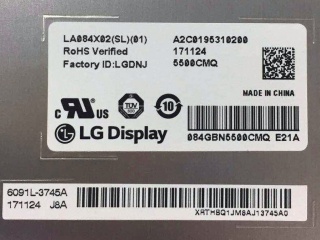

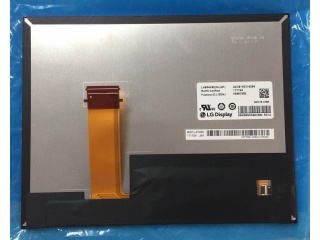

| Part Number | LA084X02-SL01 |
| Mark | LG Display |
| Gréisst | 8.4 |
| Applikatioun | Automotive Display |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.2M |
| Géigeliicht | 10S3P WLED , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | LG Display |
| Modell Numm | LA084X02-SL01 |
| Écran Gréisst | 8.4 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1024(RGB)×768 (XGA) 152PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 170.496 × 127.872 (H×V) |
| Kontur (mm) | 184.5 × 143 × 9.95 (H×V×D) |
| luminance | 1200 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Min.)(CR≥10) |
| Äntwert | 40 (Max.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Faarfdéift | 16.2M 70% NTSC |
| mass | 255/260g (Typ./Max.) |
| benotzt fir | Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 8-bit) , FPC 40 pins |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.84G (27.8 m/s²) |
| AA084VB01 | Mitsubishi | 8.4 | 640×480 |
| AM-800600M3TNQW-00H | AMPIRE | 8.4 | 800×600 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LQ084V1DG22 | SHARP | 8.4 | 640×480 |
| LQ9D01C | SHARP | 8.4 | 640×480 |
| LQ9D023 | SHARP | 8.4 | 640×480 |
| LQ9D03B | SHARP | 8.4 | 640×480 |
| LTM08C355S | TOSHIBA | 8.4 | 800×600 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
