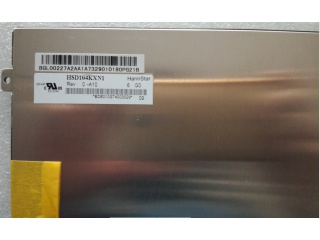

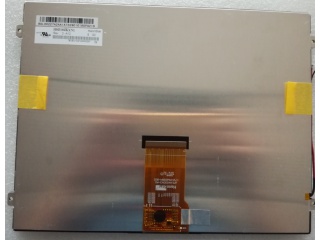

| Part Number | HSD104KXN1-A10 |
| Mark | HannStar |
| Gréisst | 10.4 |
| Applikatioun | Automotive Display |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | 4S8P WLED , 30K hours , No Driver |
| Interface | |
| Fabrikant beschwéiert | HannStar |
| Modell Numm | HSD104KXN1-A10 |
| Écran Gréisst | 10.4 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1024(RGB)×768 (XGA) 123PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 211.2 × 158.4 (H×V) |
| Kontur (mm) | 236 × 174.3 × 7 (H×V×D) |
| Bezel Beräich (mm) | 213.2 × 160.4 (H×V) |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 600 cd/m² (Typ.) |
| Kontrast Verhältnis | 900 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS Pro, Normally Black, Transmissive |
| Faarfdéift | 262K/16.2M |
| mass | 316g |
| benotzt fir | Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| G104XVN01.0 | AUO | 10.4 | 1024×768 |
| G6481L-FF | CITIZEN | 10.4 | 640×480 |
| LM64C35P | SHARP | 10.4 | 640×480 |
| LQ104S1DG61 | SHARP | 10.4 | 800×600 |
| LQ104V1LG92 | SHARP | 10.4 | 640×480 |
| LQ10D341 | SHARP | 10.4 | 640×480 |
| LTM10C306Y | TOSHIBA | 10.4 | 1024×768 |
| LTN104S2-L01 | Samsung | 10.4 | 800×600 |
| NL8060BC26-17 | NLT | 10.4 | 800×600 |
| TX26D02VM1CAA | KOE | 10.4 | 640×480 |
