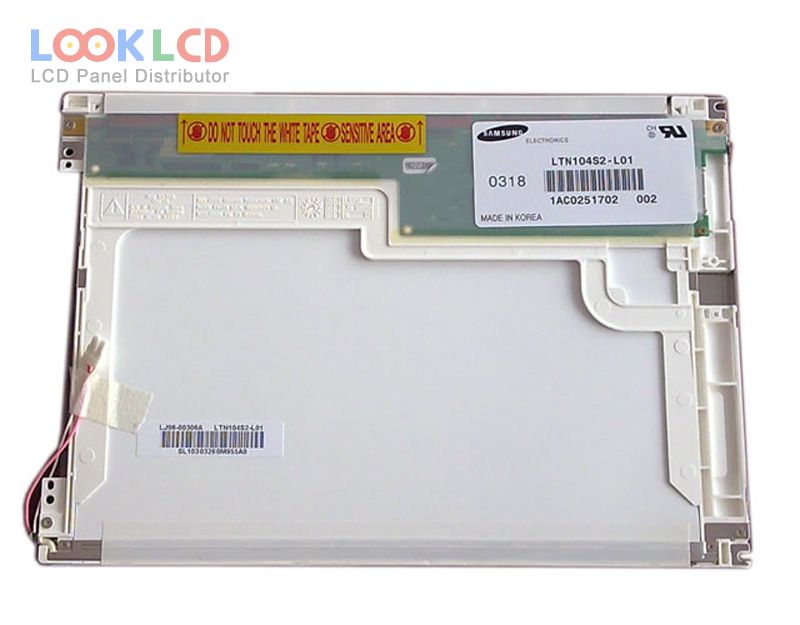

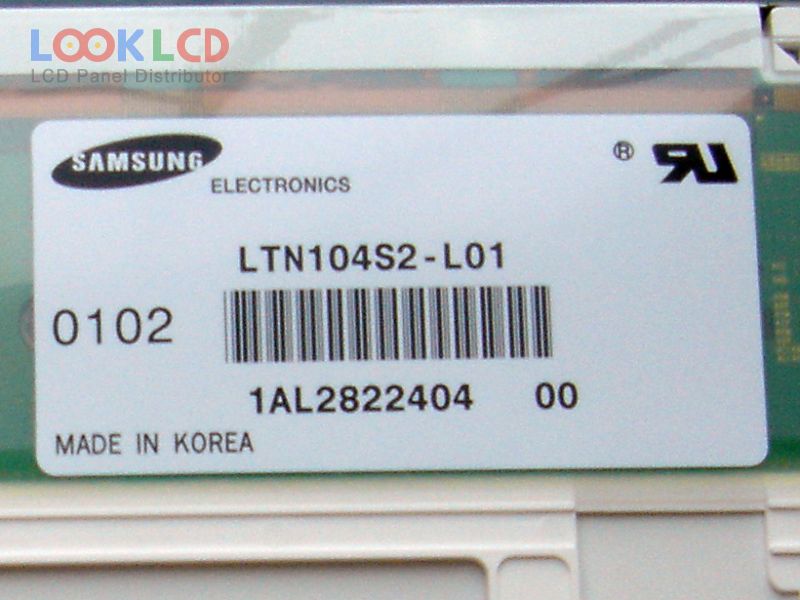

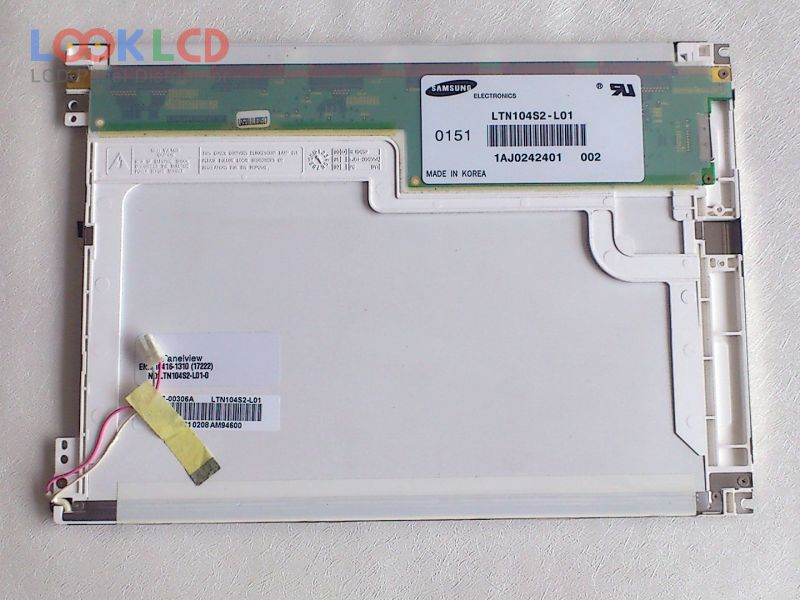

| Part Number | LTN104S2-L01 |
| Mark | Samsung |
| Gréisst | 10.4 |
| Applikatioun | NBPC |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 230 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN104S2-L01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 211.2×158.4 mm |
| skizzéieren | 244×172 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 230 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 5/25 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 14 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
