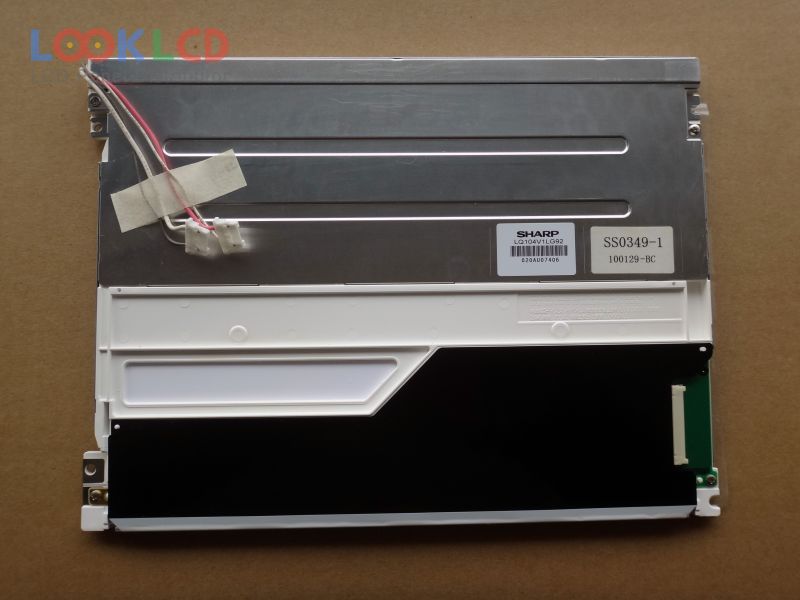

| Part Number | LQ104V1LG92 |
| Mark | SHARP |
| Gréisst | 10.4 |
| Applikatioun | GM |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 330 |
| CR | |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SHARP |
| Panel Modell | LQ104V1LG92 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 211.2×158.4 mm |
| skizzéieren | 240×179.2 mm |
| Uewerfläch | |
| Hellegkeet | 330 cd/m² (Typ.) |
| Kontrast Verhältnis | |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | |
| Vue Wénkel | |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFL |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Applikatioun | GM |
