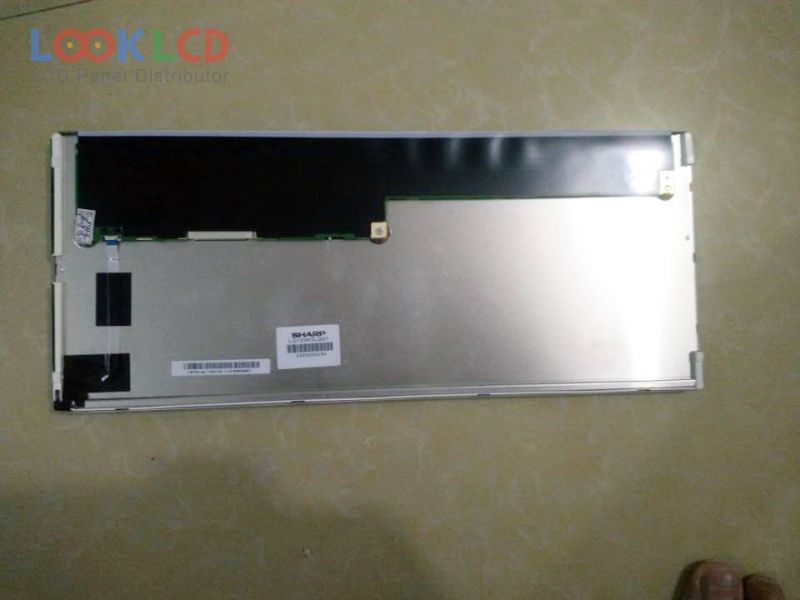

| Part Number | LQ123K3LG01 |
| Mark | SHARP |
| Gréisst | 12.3 |
| Applikatioun | GM |
| Opléisung | 1280×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SHARP |
| Panel Modell | LQ123K3LG01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.3 inch |
| Resolutioun | 1280(RGB)×480 , DVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 291.84×109.44 mm |
| skizzéieren | 312.4×130.4 mm |
| Uewerfläch | |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | |
| weisen Faarwen | 16.2M (6-bit + FRC) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Applikatioun | GM |
