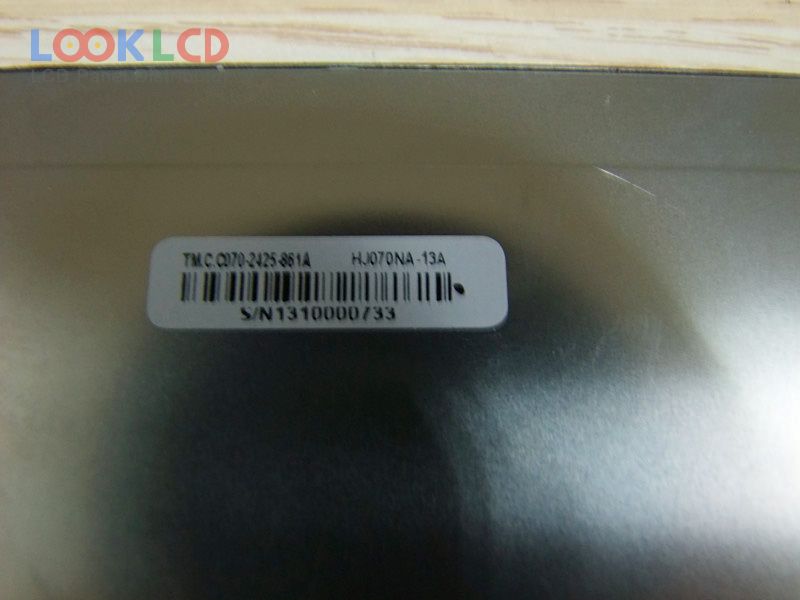

| Part Number | HJ070NA-13A |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | MP4 |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | HJ070NA-13A |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 153.6×90 mm |
| skizzéieren | 165.75×105.39×2.65 mm |
| Uewerfläch | Clear |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |

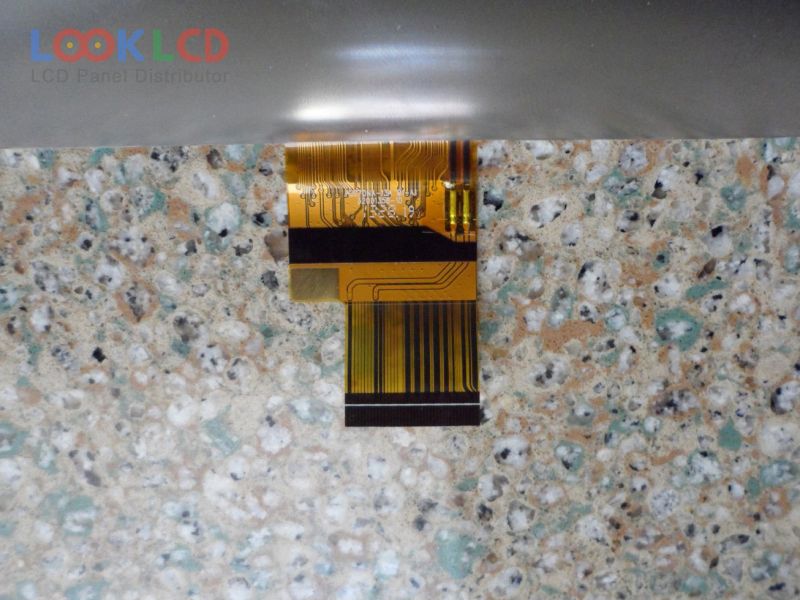

| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins |
| Input Volt | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Applikatioun | MP4 |
