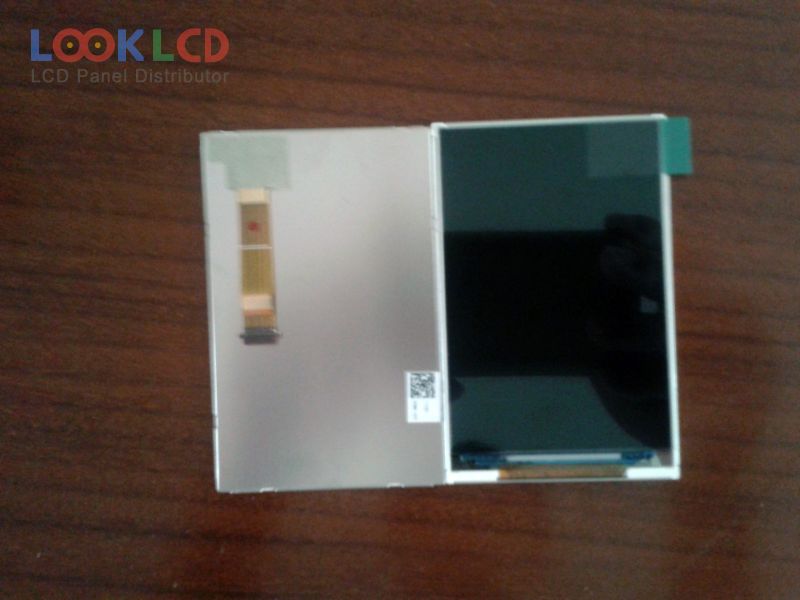

| Part Number | H320QN01 V2 |
| Mark | AUO |
| Gréisst | 3.2 |
| Applikatioun | MPH |
| Opléisung | 320×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MDDI/MIPI |
| Panel Mark | AUO |
| Panel Modell | H320QN01 V2 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.2 inch |
| Resolutioun | 320(RGB)×480 , HVGA |
| Display Modus | AMVA, Normally Black, Transmissive |
| aktiv Beräich | 45.12×67.68 mm |
| skizzéieren | 50.6×78.9×2.18 mm |
| Uewerfläch | |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193167% |
| Äntwert Zäit | 35 (Max.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S1PWLEDWithout Driver |
| Signal Interface | MDDI/MIPI, 23 pins |
| Input Volt | 1.8/2.85V (IOVDD/AVDD) |
| Applikatioun | MPH |
| 32NHF0H | SII | 3.2 | 360×640 |
| ACX567AKM-7 | SONY | 3.2 | 320×480 |
| H320QN01 V2 | AUO | 3.2 | 320×480 |
| LH320WV3-SH02 | LG Display | 3.2 | 480×800 |
| LS032V8DY01 | SHARP | 3.2 | 640×480 |
| RGS32256064WH002 | RiTdisplay | 3.2 | 256×64 |
| TFT1N6248-E | Other | 3.2 | 240×320 |
| TM032PDZ04 | Tianma | 3.2 | 320×480 |
| TM032PDZ13 | Tianma | 3.2 | 320×480 |
| TM032PDZ17 | Tianma | 3.2 | 320×480 |
| AMS529BY01 | Samsung | 5.3 | 1080×1920 |
| CM546B1-002 | CSOT | 5.5 | 1080×1920 |
| H497TLB01 | AUO | 5.0 | 720×1280 |
| HSD015F4N2-B | HannStar | 1.5 | 128×128 |
| LB020Q01-A1 | LG Display | 2.0 | 320×240 |
| LMS241GF31 | Samsung | 2.4 | 240×320 |
| LQ055T3SX02Z | SHARP | 5.5 | 1080×1920 |
| LS024J3LX01 | SHARP | 2.4 | 320×480 |
| TM024HDH36 | Tianma | 2.4 | 240×320 |
| TP241MC01G | Neoview Kolon | 2.4 | 240×320 |
