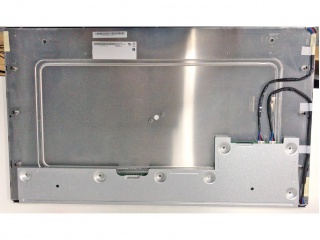

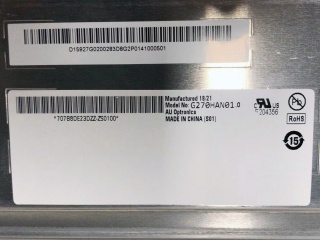

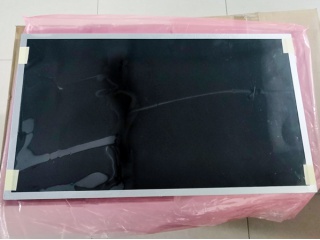

| Part Number | G270HAN01.0 |
| Mark | AUO |
| Gréisst | 27.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 1.07B |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | G270HAN01.0 |
| Panel Gréisst | 27.0" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1920(RGB)×1080, FHD, 81PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 597.888(W)×336.312(H) mm |
| bezel Ouverture | 602(W)×340.4(H) mm |
| Kontur Gréisst | 630(W)×368.2(H) ×23.4(D) mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 1000 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Display Modus | AHVA, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 14 (Typ.)(Tr+Td) |
| weisen Faarwen | 1.07B 87% NTSC |
| Lampe Typ | WLED , 50K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 3.40Kgs (Typ.) |
| Applikatioun | Industrial Outdoor High Brightness |
| Signal Interface | LVDS , 51 pins Connector |
| Input Volt | 12.0V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| HR270WU1-200 | BOE | 27.0 | 1920×1080 |
| LM270WF1-TLA1 | LG Display | 27.0 | 1920×1080 |
| LM270WF7-SSA1 | LG Display | 27.0 | 1920×1080 |
| LM270WF7-SSB1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SDE3 | LG Display | 27.0 | 2560×1440 |
| LM270WR2-SPA1 | LG Display | 27.0 | 3840×2160 |
| M270DTN01.0 | AUO | 27.0 | 2560×1440 |
| M270DTN01.1 | AUO | 27.0 | 2560×1440 |
| M270HGE-L20 | Innolux | 27.0 | 1920×1080 |
| M270QAN01.1 | AUO | 27.0 | 3840×2160 |
