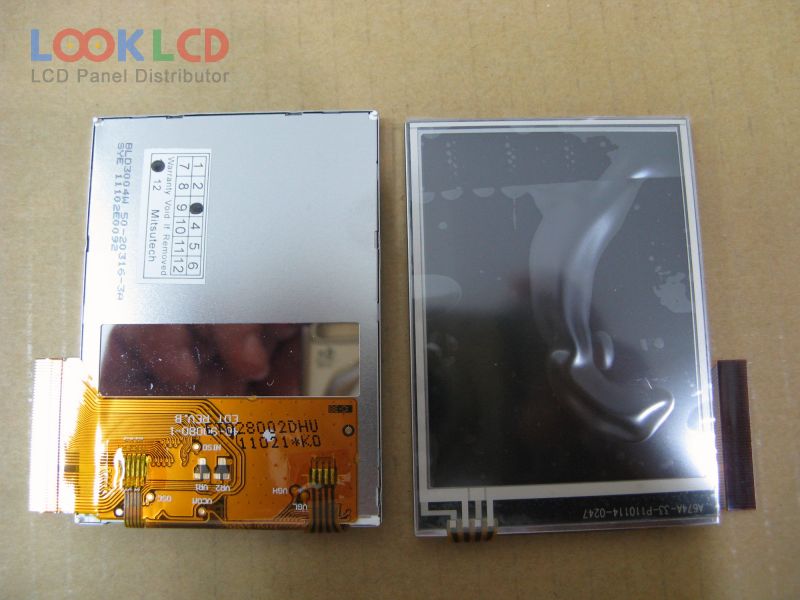

| Part Number | ET028002DMU |
| Mark | EDT |
| Gréisst | 2.8 |
| Applikatioun | MPH |
| Opléisung | 240×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | CPU |
| Panel Mark | EDT |
| Panel Modell | ET028002DMU |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 2.8 inch |
| Resolutioun | 240(RGB)×320 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 43.2×57.6 mm |
| skizzéieren | 50.5×69.6 mm |
| Uewerfläch | |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 75/70/75/55 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1S4PWLEDWithout Driver |
| Signal Interface | CPU, 50 pins |
| Input Volt | 2.8/2.8V (Typ.)(VCI/IOVCC) |
| Applikatioun | MPH |
