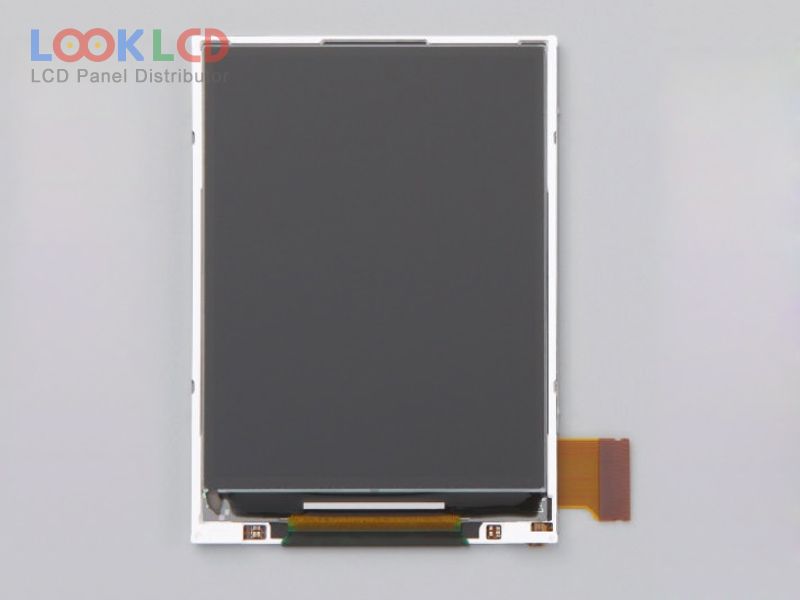

| Part Number | 28QVF2H |
| Mark | SII |
| Gréisst | 2.8 |
| Applikatioun | HHP |
| Opléisung | 240×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SII |
| Panel Modell | 28QVF2H |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 2.8 inch |
| Resolutioun | 240(RGB)×320 , QVGA |
| Display Modus | FFS, Normally Black, Transmissive |
| aktiv Beräich | 43.2×57.6 mm |
| skizzéieren | 49×69 mm |
| Uewerfläch | Clear, Hard coating |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193172% |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 4S1PWLED |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI, 35 pins |
| Input Volt | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| Applikatioun | HHP |
