| Part Number | COM43H4N66ULC |
| Mark | Ortustech |
| Gréisst | 4.3 |
| Applikatioun | Handheld & PDA |
| Opléisung | 480×800 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 600:13:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | Ortustech |
| Modell | COM43H4N66ULC 1 Compatible |
| diagonal Gréisst | 4.3 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 480(RGB)×800 [WVGA] 218PPI |
| Configuratioun | RGB Vertical Stripe |

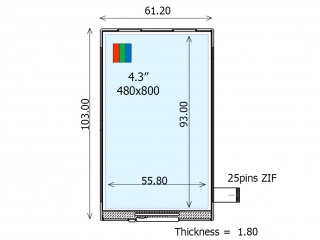

| aktiv Beräich | 55.8(H)×93(V) mm |
| kontur dim. | 61.2(H)×103(V) ×2.95(D) mm |
| bezel Beräich | - |
| Behandlung | Hard coating (2H) |
| luminance | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 40/60 (Max.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | VA, Normally Black, Transflective |
| Ënnerstëtzung Faarf | 16.7M 50% NTSC |
| Liichtquell | WLED [7S1P] , 20K hours , W/O Driver |
| Gewiicht | 25.2g (Typ.) |
| entworf fir | Handheld & PDA |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | MIPI (2 data lanes) , 25 pins FPC |
| Stroumversuergung | 3.3/1.8V (Typ.)(VDD/VCCIO) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| 43WVF3A | SII | 4.3 | 480×800 |
| AM-480272-043D | Other | 4.3 | 480×272 |
| AMS427GL45-0 | Samsung | 4.3 | 480×800 |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| C043FW01 V0 | AUO | 4.3 | 480×234 |
| CLAA043JE01CW | CPT | 4.3 | 480×272 |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| TD043MTEA2 | TPO | 4.3 | 800×480 |
