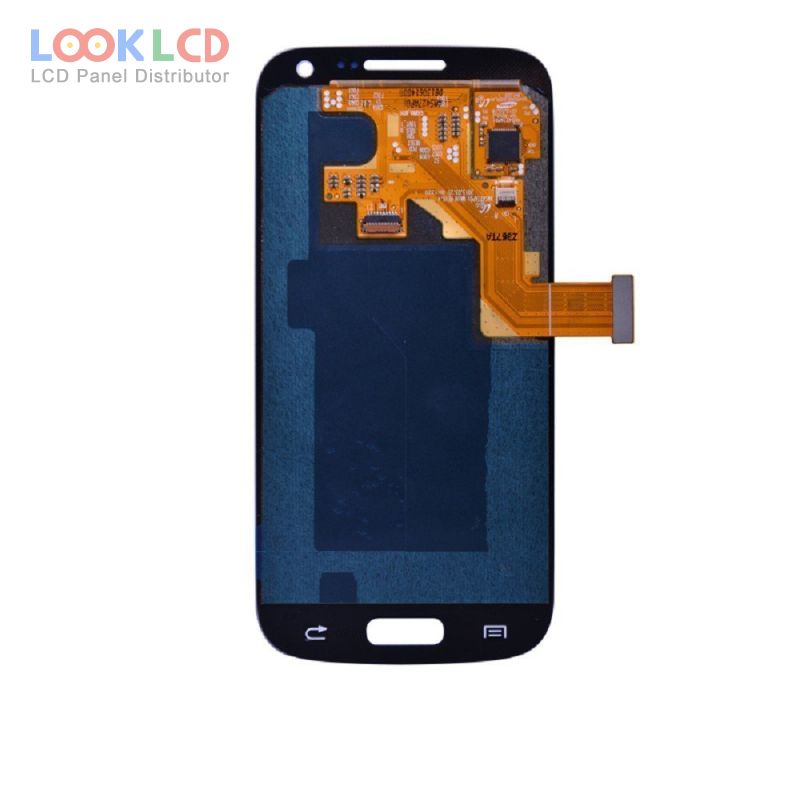

| Part Number | AMS427GL45-0 |
| Mark | Samsung |
| Gréisst | 4.3 |
| Applikatioun | MPH |
| Opléisung | 480×800 |
| Zesummesetzung | Assembly |
| Hellegkeet | 300 |
| CR | 10000:1 |
| Faarwen | 16.7M |
| Géigeliicht | self |
| Interface | TTL |
| Panel Mark | SAMSUNG SMD |
| Panel Modell | AMS427GL45-0 |
| Panel Typ | AM-OLED , Assembly |
| Panel Gréisst | 4.3 inch |
| Resolutioun | 480(RGB)×800 , WVGA |
| aktiv Beräich | 55.8×93 mm |
| skizzéieren | 62.68×121.93 mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 10000 : 1 (Min.) |
| weisen Faarwen | 16.7M (8-bit), CIE1931106% |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| Input Volt | 1.8/3.0/3.8V (Typ.)(VDD3/VCI/VBAT) |
| Applikatioun | MPH |
